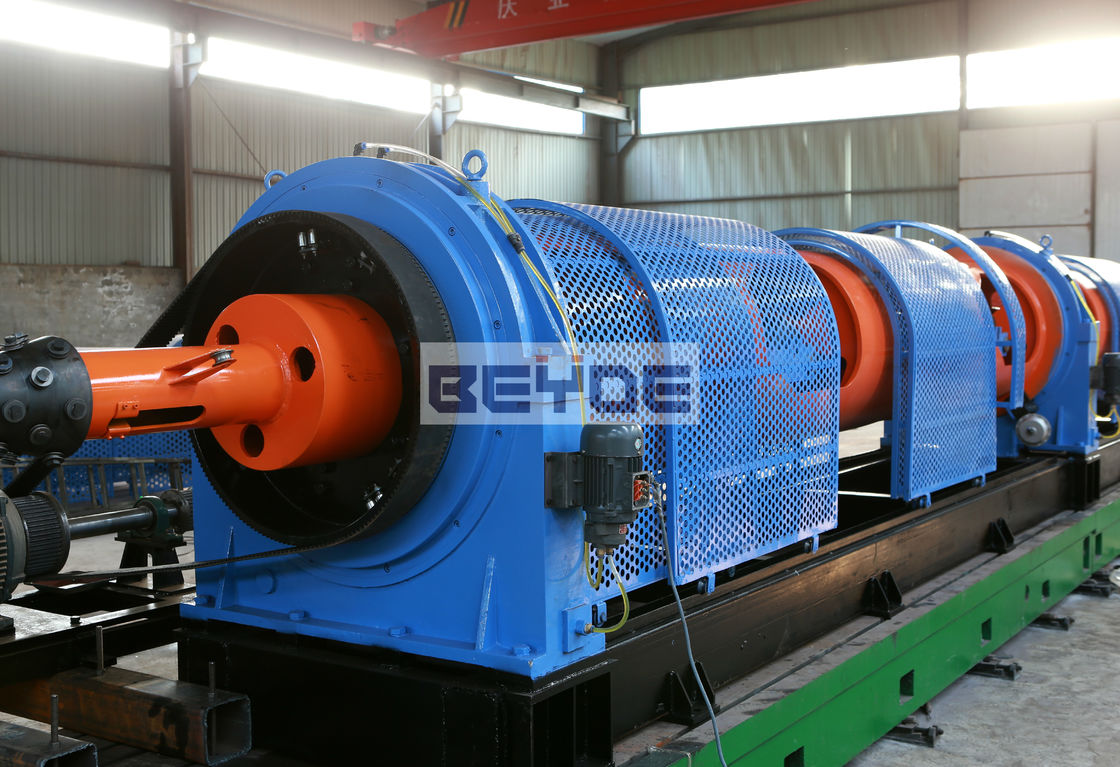

Tubular Wire Stranding Machine JGGA400/500/630 for bare copper aluminum ACSR steel wire insulated conductors backtwist

Basic Information
Place of Origin: Hebei, China
Brand Name: BEYDE
Model Number: JGGA400/500/630
Minimum Order Quantity: 1
Packaging Details: As per customers demand
Delivery Time: 80-100 days after receipt of deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/year
Color: Blue & Red And Also Customizable
High Light:

wire stranding machine

,

electric wire making machine

Application



The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process. Tubular Stranders/Cablers are suitable for the assembly of bare wires (steel wires, copper and Aluminum ) and insulated conductors into concentric strands or cables. Tubular machine is working with 100% backtwist movement.



Main Component



Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.



Technical

Specification   JGGA400 JGGA500 JGGA 630
Inlet wire Dia(mm) Conductor 1.5-3.5 1.8-4.0 2.0-5.0
steel 1.0-2.5 1.5-3.0 1.8-4.0
Cores 1.2-3.5 1.5-5.0
Frame rotation speed(r/min) 700 600 400
Stranding Pitch(mm) 41-312 44-334
Linear Speed(m/min) 27-205.3 222-166.85 14-108.9
Capstan Dia(mm) 800+1000 1000+1200 1000+1250
Size of Take-up PN1250 PN1600 PN1600



Features



1.High durability ball bearings with lubrication system of customer's choice.

2.Fully dynamic-balanced rotor tubes and micro-akigned centering/leveling.

3.Cradles can be equipped with a variety of optional bobbin loading/unloading devices and wire tension controllers.

4.Optional safety guards for main rotor.
