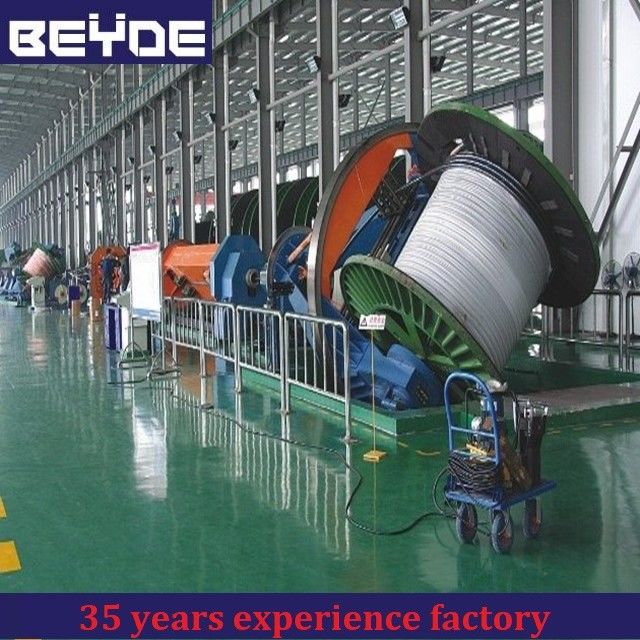

Laying Up Drum Twister Machine

Laying Up Drum Twister Machine
Laying Up Drum Twister Machine
Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: drum twister
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Contact Now
Color: Customized Max Speed: 60 RPM
PLC: Optional Usage: Cabling Medium
High Light:

wire twisting machine

,

drum twister

Constant tension 3150 Drum Twister, Cable laying up Machine N=15kW(AC)

Specifications

1.drum twister
2. used for cabling medium or low voltage insulated power cable cores and stranding splitting conductor

`Main Capability Characteristic

  • Central pay off is supported by a stand and roller, can bear more weight; The fork cantilever style pay off is optional;
  • Side pay off fork is supported by cantilever arm;
  • Loading and unloading by hydraulic or electric lifting platform, the lift platform can be placed by other lifting device in the workshop if any;
  • DC or AC driving system, controlled by PLC with guaranteed synchronization performance and easy maintenance
  • When Stranding the splitting conductor, with phase correcting feedback devices and special dies to guarantee the high quality stranding;
  • DC or variable frequency controller to achieve a slow start, stop, emergency, with separate butterfly air brake for each part.
  • Touch screen control match with the PLC and computer control system.

Technical Specification



Item mm 2000 2200 2500 3200 3600 4000 4200 Notes
Single Wire Diameter mm ≤30 ≤40 ≤50 ≤60 ≤60 ≤65 ≤65
Splitting conductor section mm2     ≤2000 ≤2500 ≤2500 ≤2800 ≤2800
Max. Stranding Diameter mm 60 80 100 130 130 140 140
Synchronous speed r/min(MAX) 60 60 50 35 35 25 25
Liner speed m/min(MAX) 60 60 50 50 50 50 50
Max. haul off force kn 30 30 50 80 80 80 80
Max. pay off reel(central) PN PN2000 PN2200 PN2500 PN3200 PN3600 PN4000 PN4200
Max. pay off reel(side) PN PN1600 PN1600 PN1600 PN2000 PN2000 PN2200 PN2200
Take up reel   PN2000 PN2200 PN2500 PN3200 PN3600 PN4000 PN4200
Central height Mm 1000 1000 1000 1000 1000 1100 1100
Total power Kw 185KW 185KW 285KW 385KW 395KW 420KW 420KW
Total weight Kg 63000 73000 83000 125000 135000 145000 158000
Reel outer width Mm 1500 1700 1900 2300 2300 2400 2400
Loading capacity Kg 8000 10000 12000 15000 25000 30000 32000
Max. speed rpm 60 60 50 35 35 25 25
  For laying up

For laying up, splitting conductor laying up





Tag:

cable twisting machine

wire twisting machine

drum twister
