Semi Automatic Tubular Strander 0.2-0.85 Mm Wire Range Easy Installation

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: tubular closer
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Total Weight (kg): 2000 Overall Dimension (mm): 7000´950´920
PLC: Optional Usage: Stranding
High Light:

wire stranding machine

,

electric wire making machine

Tube 2018 12-bobbin Tubular Stranding Machine mechanical installation

Basic Specification

processing material copper/aluminum/steel
Automatic Grade Semi-Automatic
Wire Range 0.2-0.85mm
Power Voltage 380V

Detail Description

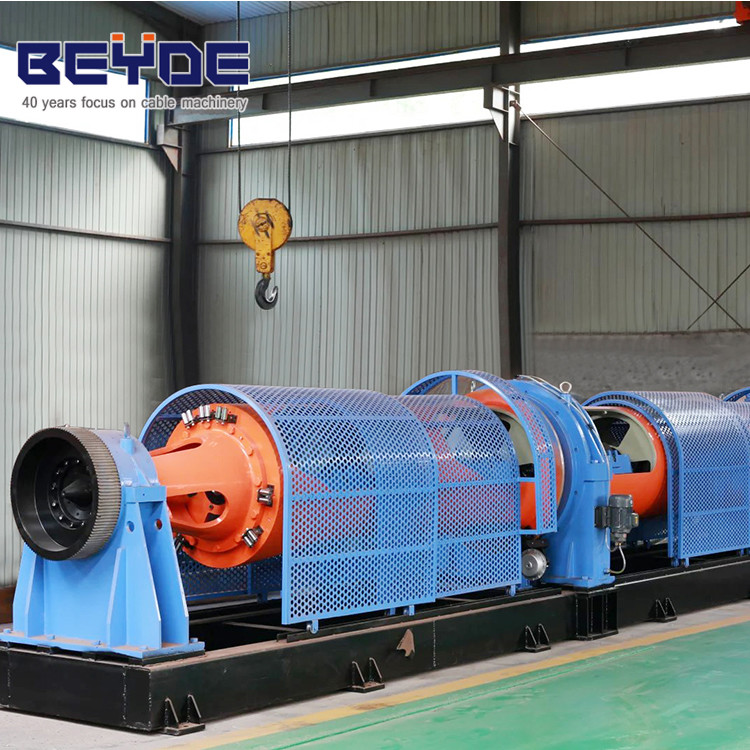

500 Tubular Stranding Machine
I. Main technical specification
 Single wire diameter(mm): Cu: 0.2-0.85, Steel: 0.5-0.8
 Stranding diameter(mm): 0.6-2.5/1.5-2.4
 Max. rotate speed of tubular barrel(r/min): 1600
 Traction wheel diameter (m/m): 318
 Wire outlet speed (m/min): 16.2-68.7 /7.3-68.7
 Stranded pitch (mm): 9.0-57.3 /6.05-57.3
 Main motor: Y132s-4B3 5.5kw 1400r/min
 Torque motor: YLJ2.5-6 2.5kg.m 0-950r/min
 Electricity hydraulic brake: YTI-25/4 60w 245N rated route:40mm
 Pay-off reel (D×d×L)(mm) 200×70×100(Ø 25.5)
 Take-up reel (D×d×L)(mm) 400×165×250(Ø 25.5)
 600×250×310(Ø40)
 Overall dimension (mm): 7000´950´920
 Total weight (kg): 2000

II. Machine componenets
The machine is comprised of pay-off stand, stranded wire tubular barrel, protective cover, die holder, traction wheel, take-up & traversing stand, electrical equipment etc.

Tubular barrel is consist of 2 sections like seamless steel pipe or long barrel made by steel slab. It is in type of 3 doors, i.e. opening 18 rectangular holes on the round body of barrel, that’s easy for unloading reels. Meanwhile, 3 points are supporting on the tubular barrel, where conical roller bearing are mounted on the gearbox of headstock and double-row centripetal spherical bearing on the gearbox of tailstock; in the middle of the tubular barrel is adopted specialized riding wheel made by cloth laminated board to support the bearing, where inside are equipped with ball bearing, making rotate flexible and less abrasion on the barrel flange.

To realize good connection between riding wheel and barrel flange, screw can be adjusted on the riding wheels.


For further technical data, pls feel free to contact us.
