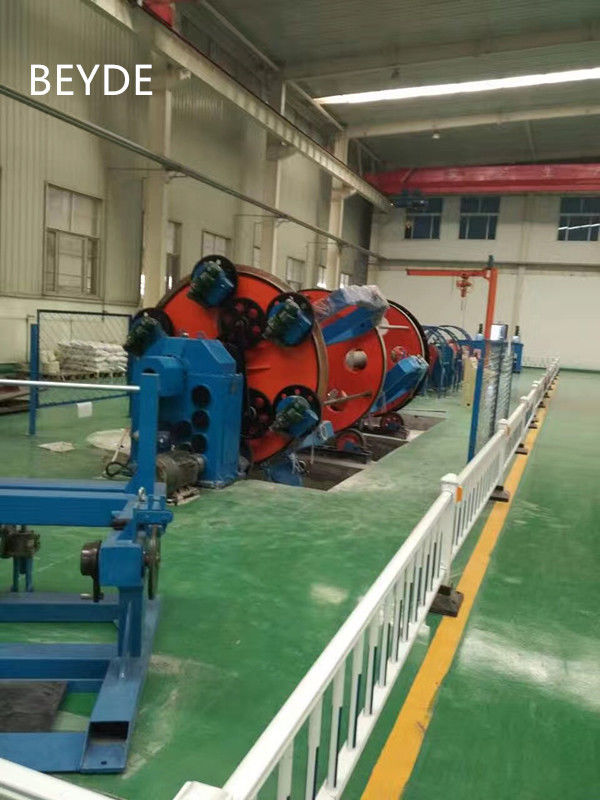

30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine

30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine

30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine

Product Details:

Place of Origin: Hejian,China
Brand Name: Beyde
Certification: CE/ISO9001
Model Number: 1250-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Contact Now
Detailed Product Description
Color: Customized Warranty:: 12 Months
PLC: Optional Usage: Stranding
Name: Laying Up Machine Application: Cable Making Industry,armoring,Stranding,Copper/Steel Wire Stranding
Plc: SIEMENS,optional


30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine





1. Application



The machine is used for strand and lay-up large section, longer round, straight sector and pre-spiral sector power cables. It can strand and lay-up the pre-spiral and non-pre-spiral cable core..



2. Type



Pay-off stand

Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500

Take-up stand

Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200

Steel-wire pay-off stand

Φ500, Φ630



3. Main Technical Specification



Model CLJ-2500 CLJ-3150 CLJ-3600
Max. laying-up OD Φ20 –Φ120 Φ25 –Φ130 Φ25 –Φ130
Max. rotating speed of rum twister and pay-off stand 50 30 30
Laying-up pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Max. linear speed 50 40 40
Max. haul-off force Standard 3000 3000 3000
With 96pcs steel wire armoring 5000 6000 6000
Non-metallic taping device Max. speed 500 500 500
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ600 xΦ80 Φ600 xΦ80 Φ600 xΦ80
Tape width 15 - 80 15 – 80 15 - 80
Metallic taping device Max. speed 300 300 300
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ800 xΦ200 Φ800 xΦ200 Φ800 xΦ200
Steel tape width 15 - 60 15 - 60 15 - 60
Central pay-off stand PN2500 PN3150 PN3600
Pay-off stand PN1600 PN2000 PN2500
Take-up drum head size PN2500 PN3150 PN3600
Steel wire armoring specification PND500 PND630 PND630
Main motor power 45 55 75
Central payoff stand motor power 22 45 55





30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine
