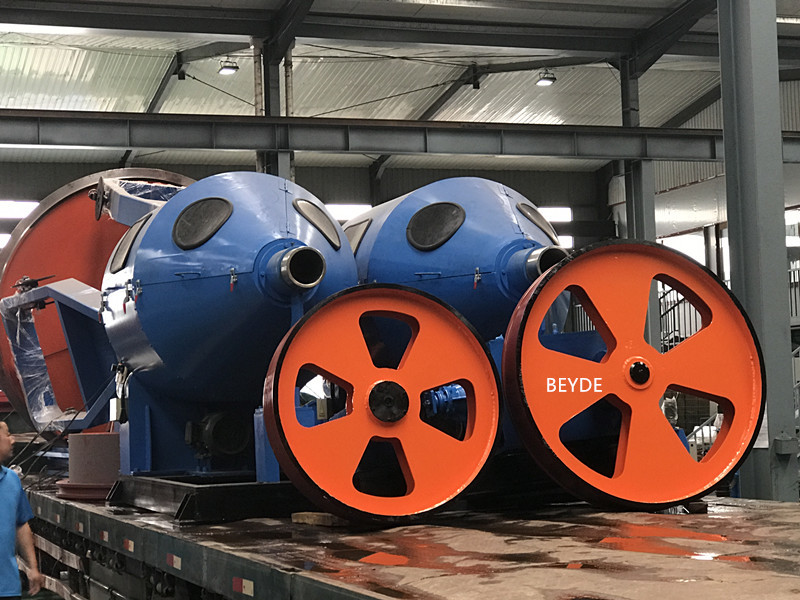

Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying - Up Machine

Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying - Up Machine

Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying - Up Machine

Product Details:

Place of Origin: China
Brand Name: Beyde
Certification: CE.ROHS,SGS,
Model Number: Metal Tapper

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Container
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/ Year
Contact Now
Detailed Product Description
Usage: Taping Metal Belt Function: Wire Stripping
Taping Belt Material:: Metal 3.2 Copper Belt Pitch: 0-558.4mm(Steplessly Adjustable)
Taping Structure: Concentric Type Color: Customer Design

High Speed Barrel Type Wrapping Machine For Paper and Metal Tape On Laying-up Machine



Techinical data



3.1 taping belt material:                                                                                        copper belt
3.2 copper belt pitch:                                                                                            0-558.4mm(Steplessly adjustable)
3.3 Copper belt head max speed:                                                                         606r/min
3.4 Take bobbin specification bobbin diameter × aperture × bandwidth:              Ø630×Ø160×(20-60)mm
3.5 Taping structure:                                                                                              Concentric type





Detail Information



1.2 Ground shaft drive, stepless speed change, with switching function of left and right side cladding process.

1.3 The machine is concentric structure, the rotation speed is fast, the operation is stable, and the angle of the guide roller is convenient to adjust..

1.4 The pay off tape tension is controlled by electromagnetic tension, and the tension is transmitted to the bag chuck through the toothed belt. The tension is not stopped. Online electronic adjustment (this structural feature: changing the original mechanical friction tension from full to empty and cumbersome and time-consuming machinery Tension adjustment)

1.5 Pay off tape and clamped bobbin, copper lead head brake function is separated, respectively, with independent pneumatic brake function, consistent with the whole machine brake, consistent with the release of the disc brake, avoiding high-speed rotation of inertia to break the copper strip (this feature The drawback of tearing off the copper strip caused by the inertial force of the original chuck and the large disk rotating in the same direction)

1.6 The copper belt head has the function of “pulse broken belt parking”, which can effectively avoid the shutdown of the generation and the end of the belt, and effectively avoid the leakage repair process..

Equipped with a storage rack, the inlet can hold a mold stable cable core.

Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying - Up Machine
