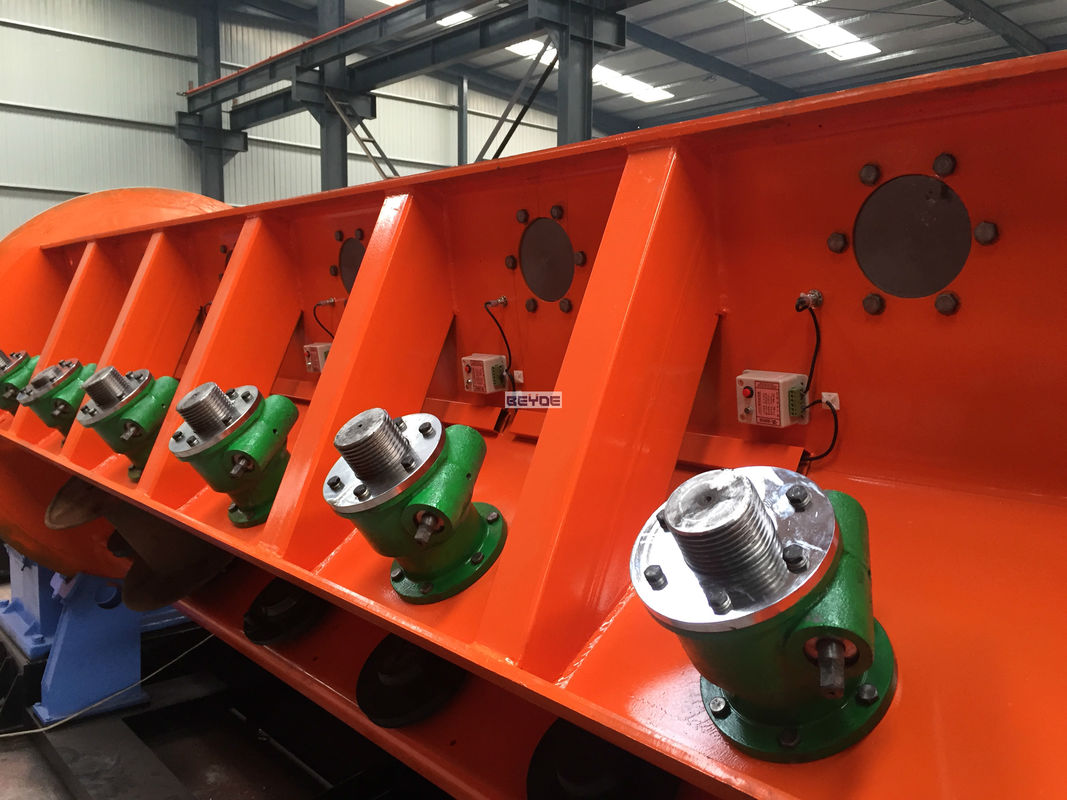

Rigid Stranding Machine JLK-500 for aluminum copper steel wire shaping or conductor stranding, payoff,takeup,hauloff

Basic Information
Place of Origin: CHINA
Brand Name: BEYDE
Model Number: JLK-500
Minimum Order Quantity: 1
Packaging Details: safety package for container loading
Delivery Time: 60 working days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 100/sets/year
COLOR: Blue&red And Also Customizable
High Light:

electric cable manufacturing machinery

,

cable wire machine

  1. Rigid Stranding Machine
  1. Application: The machine mailly used for making large length of aluminum, copper and steel core aluminum stranded wire shaped conductor stranding, compacting and round conductor stranding and shaped spiral wire production..
  2. Conponent: Pay-off,mainframes of 6-reel, 12-reel, 18-reel,24-reel and 30-reel, die holder, haul-off unit, take-up and other electrical equipment
  3. Main Character:1. adopting rigid structure, the centre spindle is not influenced by the weight of the thread reel,then its rigidity intensity is high, and the whole capacity is perfect, and running speed is rapid.

2. Thread reel is pressed on with electromotion and manipulate by hand ,each of which has machine locked safeguard.

3. It can be equipped with centralized up-down reel according to your requirements.

4. Pay-off tensile force is invariableness which is controlled by machine friction or pneumatic tensile force.

5. This machine outfits the most advanced pulse parking equipment. This part controls the thread reel directly, when any thread reel does not work or the thread runs out, the whole machine will brake automatically in time, so it solves the intractable problem that the machine can not be repaired easily when the thread is disconnection.

6. It sets up single thread pre-spiralling unit, so the thread is not falloff after twisting.

7. Double wheel and double capstan of haul-off sstrengthens the traction capacity. The pneumatic pressing equipment will make the thread not disperse and stranding pitch stabilize.

  1. Technical Parameter
Specification JLK500/12 18 24 JLK630/12 18 24
Dia. of single wire(mm) Copper 1.2-5.0
Aluminium 1.5-5.0
Production dia.(mm) 45 45
Stranding cage speed( r/min) 61-164 46-124
Stranding pitch (mm) 41.7-976.8 50-1143
Capstan(mm) 2000 2500
Production speed (m/min) 8.2-55.1
Charge reel(mm) PL1600-2500 PL2500-3150
