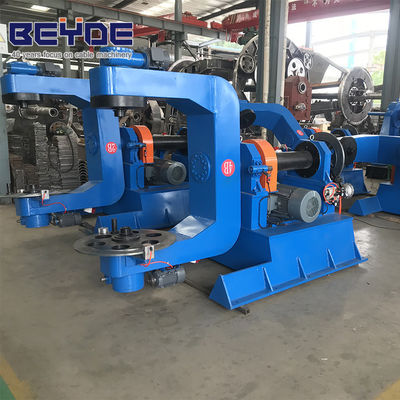

Eco Friendly Drum Twister Machine OD Laid Up 25-120 Mm Easy Operation

Eco Friendly Drum Twister Machine OD Laid Up 25-120 Mm Easy Operation

    • Eco Friendly Drum Twister Machine OD Laid Up 25-120 Mm Easy Operation
  • Eco Friendly Drum Twister Machine OD Laid Up 25-120 Mm Easy Operation

    Product Details:

    Place of Origin: Hejian,China
    Brand Name: Beyde
    Certification: CE/ISO9001
    Model Number: drum twister

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiate
    Packaging Details: Container loading with safety packing
    Delivery Time: 70-150 Days after receive deposit
    Payment Terms: L/C, T/T
    Supply Ability: 120 Set/Year
    Contact Now
    Detailed Product Description
    Color: Customized Warranty:: 12 Months
    PLC: Optional Usage: Stranding
    High Light:

    wire twisting machine

    ,

    drum twister

    Cable Machine - Drum Twister laying up machine OD of laid-up Φ25-Φ120mm



    drum twister for copper coated wire cable and transparent wire



    1. Application of the machine

    This machine is widely used in the various sections of the three core, four core, five core plastic power cables, XLPE cable (cross-linked polyethylene cable) and armored cable. The shape of the wire core can be round-shaped, fan-shaped and W-shaped.



    This machine is advanced performance, strong practicability, beautiful appearance and easy operation.



    2. The main technical parameters

    No. Parameter name Unit CLY630 Type CLY1000 Type CLY1250 Type CLY1400 Type CLY1600 Type
    1 Wire-core cross section area mm2 2.5-16 10-120 16-185 25-240 50-400
    2 Max cabling diameter mm 40 50 60 80 100
    3 Cage speed r/min

    24.6-56.5

    (6 stage)

    11.1-25.1

    (6 stage)

    9.5-21.5

    (6 stage)

    6.8-15.5

    (6 stage)

    4.3-9.6

    (6 stage)

    4 Cabling pitch mm 90-2889 90-2889 180-3095 278-4766 448-7605
    5 Cable speed m/min

    2.4-33.1

    (16 stage)

    2.2-32.7

    (32 stage)

    3.87-29.4

    (36 stage)

    4.3-32.7

    (36 stage)

    4.3-32.7

    (36 stage)

    6 Pay-off bobbin mm PN630 PN1000 PN1250 PN1400 PN1600
    7 Take-up bobbin mm PN100-PN1600 PN100-PN2000 PN100-PN2000 PN125-PN2500 PN140-PN2800
    8 Armoring head speed r/min

    191-781

    (9 stage)

    108-444

    (9 stage)

    108-444

    (9 stage)

    108-444

    (9 stage)

    108-444

    (9 stage)

    9 Armoring pitch mm 3-173 5-302 8-272 9-302 9-302
    10 Taping head speed r/min

    139-568

    (9 stage)

    81-323

    (9 stage)

    81-323

    (9 stage)

    81-323

    (9 stage)

    81-323

    (9 stage)

    11 Taping pitch mm 4-238 6-403 12-362 13-403 13-403
    12 Central height mm 1000 1000 1000 1000 1000
    Our Services

    1.Good quality.

    2.Professional machine instructions.Tell me the cables and wires you want to make and we will recommend the most suitable machines for you.

    3.Professional technical instructions.Will guide you how to manage this machine to make your cables and wires into good looking and good quality.

    4.Good after-sales service.Will give you service within 2 days.

    5.Fast response and all day service.Online service 24 hours x 365 days.
