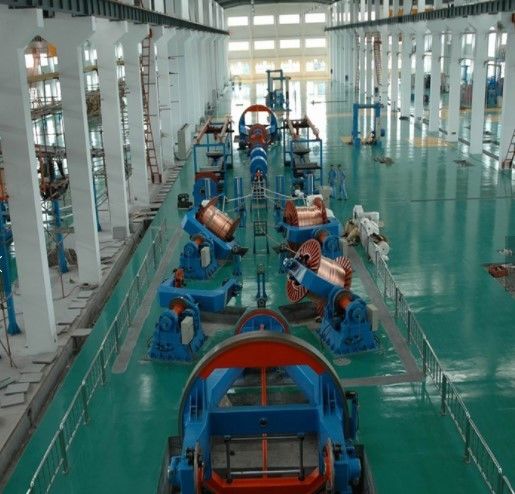

Cable Stranding Drum Twister Machine

Cable Stranding Drum Twister Machine

    • Cable Stranding Drum Twister Machine
  • Cable Stranding Drum Twister Machine

    Product Details:

    Place of Origin: Hejian,China
    Brand Name: Beyde
    Certification: CE/ISO9001
    Model Number: drum twister

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiate
    Packaging Details: Container loading with safety packing
    Delivery Time: 70-150 Days after receive deposit
    Payment Terms: L/C, T/T
    Supply Ability: 120 Set/Year
    Contact Now
    Detailed Product Description
    Color: Customized Warranty:: 12 Months
    PLC: Optional Usage: Stranding
    High Light:

    cable twisting machine

    ,

    drum twister

    Cable spool 1+6 reel / Drum twister with pneumatic clamp type braking device

    Specifications

    used for stranding 1+6 steel, compact, bare Al/Cu wire, aluminum alloy wire

    Main Capability Characteristic

    • Central pay off is supported by a stand and roller, can bear more weight; The fork cantilever style pay off is optional;
    • Side pay off fork is supported by cantilever arm;
    • Loading and unloading by hydraulic or electric lifting platform, the lift platform can be placed by other lifting device in the workshop if any;
    • DC or AC driving system, controlled by PLC with guaranteed synchronization performance and easy maintenance
    • When Stranding the splitting conductor, with phase correcting feedback devices and special dies to guarantee the high quality stranding;
    • DC or variable frequency controller to achieve a slow start, stop, emergency, with separate butterfly air brake for each part.
    • Touch screen control match with the PLC and computer control system.

    Technical Specification



    Item mm 2000 2200 2500 3200 3600 4000 4200 Notes
    Single Wire Diameter mm ≤30 ≤40 ≤50 ≤60 ≤60 ≤65 ≤65
    Splitting conductor section mm2     ≤2000 ≤2500 ≤2500 ≤2800 ≤2800
    Max. Stranding Diameter mm 60 80 100 130 130 140 140
    Synchronous speed r/min(MAX) 60 60 50 35 35 25 25
    Liner speed m/min(MAX) 60 60 50 50 50 50 50
    Max. haul off force kn 30 30 50 80 80 80 80
    Max. pay off reel(central) PN PN2000 PN2200 PN2500 PN3200 PN3600 PN4000 PN4200
    Max. pay off reel(side) PN PN1600 PN1600 PN1600 PN2000 PN2000 PN2200 PN2200
    Take up reel   PN2000 PN2200 PN2500 PN3200 PN3600 PN4000 PN4200
    Central height Mm 1000 1000 1000 1000 1000 1100 1100
    Total power Kw 185KW 185KW 285KW 385KW 395KW 420KW 420KW
    Total weight Kg 63000 73000 83000 125000 135000 145000 158000
    Reel outer width Mm 1500 1700 1900 2300 2300 2400 2400
    Loading capacity Kg 8000 10000 12000 15000 25000 30000 32000
    Max. speed rpm 60 60 50 35 35 25 25
      For laying up For laying up, splitting conductor laying up



    _04





    Advantage:

    1. Assembly structure of the twisting arms and pressure-bearing plate: all the parts will be assembled together after all the processing, which avoided the possible defects caused by the processing after assembling. so a more accurate and reliable operation. Higher speed, lower noise and more reliable quality
    2. Touch panel with PLC and PROFIRBUS busbar, which realize a well-organized on-and-off, operation and cyclical synchronization of the different motors. DANFOSS converter controls all the AC motors. Advance electrical control, easy operating, and reliable operation
    3. Converter control all the AC motors in the line: chief motor, pay-off motors, take-up motors, traversing motors, driven motors, taping motors and rotatory take-up. Stable function, less defects, easy maintenance.
    4. Pitch can be set, changed and displayed on touch panels, and also the laying (to right or left),point moving and fast moving can be set on touch panel
    5. Tension control of the take-up can be set changed and displayed on the touch panel.
    6. THE PAY OFF IS Controlled by a separate motor which can realize a synchronous rotation to the rotary take up. Protection devices and auto-stop at defects; easy operation and reliable
