Large Wire Rope Armoured Cable Machine 9.7-146 Millimeter Taping Pitch

Large Wire Rope Armoured Cable Machine 9.7-146 Millimeter Taping Pitch

  • Large Wire Rope Armoured Cable Machine 9.7-146 Millimeter Taping Pitch
Large Wire Rope Armoured Cable Machine 9.7-146 Millimeter Taping Pitch
Product Details:
Place of Origin: Hejian,China
Brand Name: Beyde
Certification: CE/ISO9001
Model Number: Armouring machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Contact Now
Detailed Product Description
Taping Pitch: 9.7-146 Millimeter Warranty:: 12 Months
PLC: Optional Main Component: Armouring Hose
High Light:

cable extruder machine

,

cable armouring machine

High speed and quality Steel wire armouring machine for large steel wire ropes



Application

This machine is mainly used for armouring single or double steel wire around the cable, or manufacturing large section of steel wire ropes.

Main Component

Central pay-off strand, armouring hose, die holder,taping device,traction device,meter counter, take-up traverse device,transminssion system and electric control system.



Technical Parameter
Single wire diameter(mm) 1.0-4.0
Armouring Dia.(mm) 130
Rotation speed(r/min) 25-53
Armouring pitch(mm) 106-1570
Taping speed(r/min) 185-416
Taping pitch(mm) 9.7-146

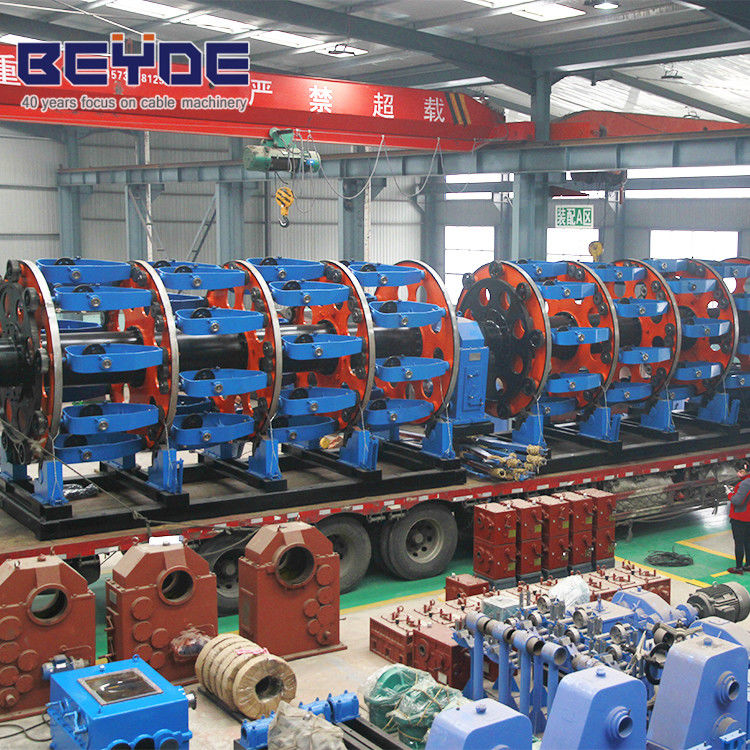

Product images






Company Information



BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China. BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products. Beyde was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With mature technological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines. Our machines have been exported to the United States, Russia, Malaysia, Saudi Arabia, Iran and other countries. The quality and performance of our products has been widely recognized and praised by overseas customers. We can customize the capacity, color of our machines according to the demands of clients. We look forward to working with more overseas cable manufacturers to have mutually beneficial cooperation and create success and glory together!
