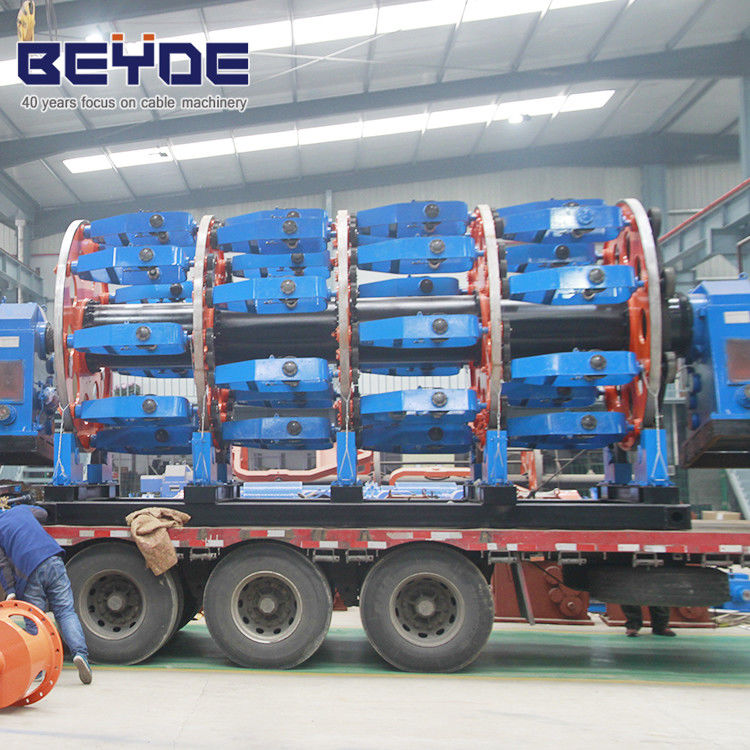

Steel Wire Armoured Cable Machine Host Frame With Traction Device

Steel Wire Armoured Cable Machine Host Frame With Traction Device

Steel Wire Armoured Cable Machine Host Frame With Traction Device

Product Details:

Place of Origin: Hejian,China
Brand Name: Beyde
Certification: CE/ISO9001
Model Number: Steel Armouring machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Contact Now
Detailed Product Description
Color: Customized Component: Impacting Device
PLC: Optional Usage: Non-back-twist Stranding



China Armored cable machine manufacturer for steel wire armouring



Why choose us?

1.34 years experience on cable/wire manufacture equipment

2.Industrial chain advantage:Located in Hebei province in Huabei area,one of the most important heavy industry belt of China,HongQi`s production get:

--better quality

--less cost

3.As both manufacture and trader,we can control:

--the Price
--the Quality
--the Delivery time

4.Flexible shipment choice:TIANJIN seaport or SHANGHAI seaport

5.Consummate technical guidance from pre-sale to after-sale

Main Parameter

Dia. of inlet wire (mm)
Copper: 1.55-5.0
Aluminum: 1.8-5.0
Steel: 1.2-3.0
Rotating speed (r/min)
46-116
35-88
24-60
Stranding pitch
40-586
39-777
57-1134
Taping RPM (r/min)
185-416
Taping pitch (mm)
8.2-147



Structure diagram

QQ20170309091851

Features

1.High rigid, high speed and low inertia.

2.100% Back twist design insure that no abrasion damage while stranding.

3.Most advanced emergency stop device.

4.Various PLC electrics optional.

5.Constant Bobbin back tension achieved by positive device & Single bobbin rotation is electronically sensed for controlling the required tension.In addition,magetic tension control system is optional which is cheaper than the pheumatic mode.

6.Planetary stranding machine is qualified for any wire/cable processing job.

Product Photos



Application

The aluminum machines is mainly used for non-back-twist stranding and compacting of round copper conductor and sector aluminum conductor; and also can be used for non-back-twist stranding of large section,long length copper-cored aluminum wires and aluminum alloy conductors.



Component

Central pay-off, host frame, die holder, impacting device, traction device, take-up and traversing device, etc.
