72 Wire 4XPN2000—PN2500 Drum Twister Machine With Phase Detection Function

72 Wire 4XPN2000—PN2500 Drum Twister Machine With Phase Detection Function

72 Wire 4XPN2000—PN2500 Drum Twister Machine With Phase Detection Function

Product Details:

Place of Origin: Hejian,China
Brand Name: Beyde
Certification: CE/ISO9001
Model Number: drum twister

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Contact Now
Detailed Product Description
Color: Customized Laying Up Pitch: Step-less, Adjustable
PLC: Optional Central Height: 1000 Mm
Pay Off: Fork Type Caterpillar Pneumatic Traction: TQD3000



72 Wire 4XPN2000—PN2500 Drum Twister Machine With Phase Detection FunctionHigh speed drum twister laying up big diameter cable machine / Max rotation speed 30r/min

Technical Parameter
Model JPD-2500 JPD-3150 JPD-3600
Maximum laying up OD(mm) 20-120 25-130 25-130
Maximum cross-section(mm²) 50 30 30
Laying up pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Maximum linear speed(RPM) 50 40 40
Maximum haul off force Standard(KN) 3000 3000 3000
With 96pcs steel wire armoring(KN) 5000 6000 6000
Non-metallic taping device Maximum speed(RPM) 500 500 500
Taping pitch(mm) Step-less, adjustable Step-less, adjustable Step-less, adjustable
Taping reel 600X80 600X80 600X80
Taping width(mm) 15-80 15-80 15-80
Metallic taping device Maximum speed(mm) 300 300 300
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Taping reel(mm) Φ800XΦ200 Φ800XΦ200 Φ800XΦ200
Steel Tape width(mm) 15-60 15-60 15-60
Central pay off(mm) PN2000-2500 PN2500-3150 PN2500-3600
Pay off stand(mm) PN1250-1600 PN1600-2000 PN2000-2500
Take up drum head size(mm) PN2000-2500 PN2500-3150 PN2500-3600
Steel wire armoring specification PND500 PND500-630 PND500-630
Main motor power(KW) 45 55 75
Central payoff stand motor power(KW) 22 45 55
Payoff stand motor power(KW) 15 15 18.5
Traversing stand motor power(KW) 2.2 2.2 2.2
Take up stand motor power(KW) 5.5(2units) 5.5(2units) 7.5(2units)
Central height(mm) 1000 1000 1000

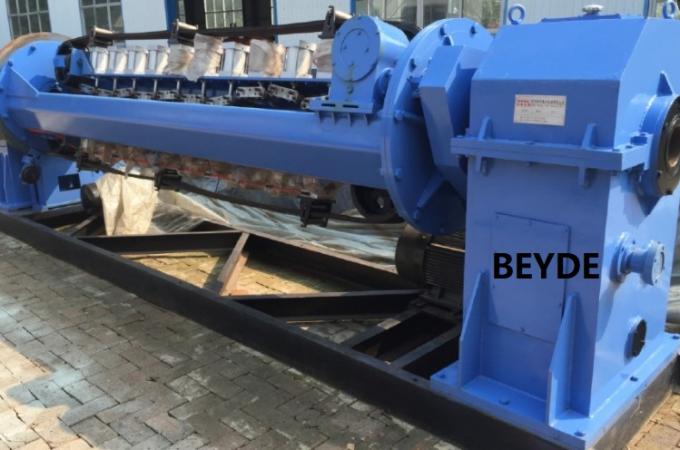

Product show
