Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 250m / Min

Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 250m / Min

Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 250m / Min

Product Details:

Place of Origin: China
Brand Name: Beyde
Certification: ISO9001
Model Number: 710

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Container
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Year
Contact Now
Detailed Product Description
Usage: Stranding,Twisting,Rigid Frame Cable Wire Stranding Machine Color: As Requirement
Name: Rigid Frame Wire Cable Stranding Machine,rigid Type Stranding Equipment Application: Stranding Wire And Cable
Wire Material: Copper,aluminum,steel Cage Rotate Speed: 40-156r/min.
Take-up Reel: PND1600-PND3150

Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 60m / Min



Processing technology:

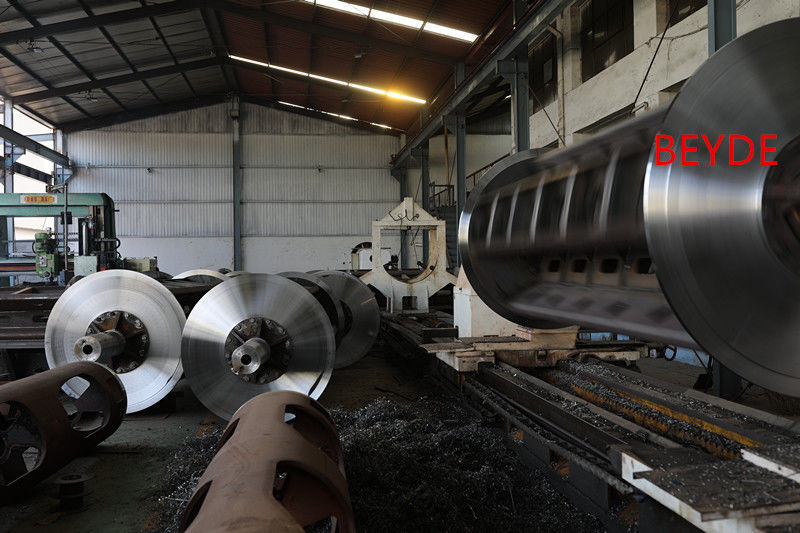

The big bending machine is used to bend the steel plate to the frame structure. Four frame structures share the circle equally, and they are welded together with the big discs on the both sides. Also all the structures are welded to the center thick wall tube. The whole structure is strong and beautiful





Parameter:





Model (Rigid Stranding Machine) JLK-500 JLK-630 JLK-710/720
Diameter of single wire Copper φ1.5-5 mm φ1.5-5 mm  φ1.5-5 mm
Aluminum φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm
Maximum stranded conductor OD φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch 6 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
12 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
18 Bobbin Stranding Cage 44-793 mm 63-1056 mm 57-1012 mm
24 Bobbin Stranding Cage 51-924 mm 71-1246 mm 66-1190 mm
30 Bobbin Stranding Cage 57-1028 mm 87-1553 mm 79-1403 mm
Rotating Speed 6 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
12 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
18 Bobbin Stranding Cage 208.5 r/min 155 r/min 142.6 r/min
24 Bobbin Stranding Cage 179 r/min 130.1 r/min 122.3 r/min
30 Bobbin Stranding Cage 161.8 r/min 115.9 r/min 102.7 r/min
Capstan Capstan Wheel Diameter 2000 mm 2000 mm 2000 mm
Maximum Haul-off Force 30 T 30 T 40 T
Pre-spiral Device Pitch 500-2500mm 500-2500mm 500-2500mm
Motor Power 90-180 KW 110-180 KW 130-180 KW
Bobbin Size 500*375*127 630*475*127 710*530*127
Center Payoff Bobbin 1600*800*80 1600*800*80 1600*800*80
Take-up Bobbin 2500*1500*125 2500*1500*125 3150*1900*160
Maximum Haul-off Linear Speed 69 m/min 69 m/min 62 m/min
Central Height 1000 mm 1100 mm 1100 mm

Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 250m / Min
