| Place of Origin: | Hejian,China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | JLK500/18+24 |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Container loading with safety packing |
| Delivery Time: | 90 Days after receive deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 120 Set/Year |
| Warranty:: | 12 Months | PLC: | Siemens |
|---|---|---|---|
| Usage: | Stranding | Input Wire: | 1.5-5.0mm |
| Max Stranding: | Step-less Ajust | Max Rotating: | 250r/min |
| Wrapping Head: | Option | Motor: | Siemens |
| Take-up: | 2000mm | Pay-off: | 2000mm |
| Capstan: | 1600mm | Material: | Copper And Aluminum Conductor |
| Max. Stranding Section: | 200mm2 | Max. Traverse Pitch: | 120mm |
| Power Supply: | AC380-415V/50Hz | ||
| High Light: | 1.5mm wire stranding machine,cable industry wire stranding machine,pre twist rigid strander |
||
24B (8+8+8) Customized Rigid Type Stranding Machine for Cable Industry
We design a complete set of 710/630/500 Rigid Strander 127 Bobbin Row Loading Wire Stranding Machine for related enterprise and individual users, and constantly strive to meet the diverse needs of customers. Our global sales service network are all over the world, so the delivery time is short. We all wish to build win-win deals with our customers, so give us a call today and make a new friend!
1. Application:
This machine is mainly used for stranding copper and aluminum wires with 1+6+12+18+24+30+36 structure.
It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.
2. Main parameter:
| Model | JLK-500/630 | JLK-710/720 | ||
| Diameter of single wire(mm) | Copper | Φ1.5-Φ5.0 | Φ1.5-Φ5.0 | |
| Copper | Φ1.8-Φ5.0 | Φ1.8-Φ5.0 | ||
| Maximum cross-section (mm²) |
Copper | 800 | 800 | |
| Aluminum | 1000 | 1000 | ||
| Maximum stranded conductor OD(mm) | Φ45 | Φ45 | ||
| Maximum rotating speed (RPM) |
6B | 192-218 | 146-160 | |
| 12B | Full loaded | 170-192 | 146-160 | |
| 18B | 150-170 | 121-133 | ||
| 24B | Empty loaded | 130-147 | 100-100 | |
| 30B | 117-132 | 83-91 | ||
| Stranding cage pitch step-less can be set on the touching screen | All the cages | Step-less, adjustable | Step-less, adjustable | |
| Stranding cage motor power(KW) | 6B | 55 | 75 | |
| 12B | 75 | 90 | ||
| 18B | 90 | 110 | ||
| 24B | 110 | 132 | ||
| 30B | 132 | 160 | ||
| Pre-twisting& compacting | Pitch (mm) | 400-3000 | 400-3000 | |
| Motor power (KW) | 18.5 | 18.5 | ||
| Taping device | Maximum speed(RPM) | 500 | 500 | |
| Taping pitch(mm) | Step-less, adjustable | Step-less, adjustable | ||
| Tape reel(mm) | Φ600XΦ80 | Φ600XΦ80 | ||
| Motor power(KW) | 11 | 11 | ||
| Tape width(mm) | 15-60 | 15-60 | ||
| Capstan | Capstan wheel diameter(mm) | Φ2500 | Φ2500 | |
| Maximum linear speed(m/min) | 40 | 40 | ||
| Maximum haul-off force(N) | 15000 | 15000 | ||
| Motor power(KW) | 110 | 110 | ||
| Center payoff reel | PN800-PN1600 | PN1000-PN2000 | ||
| Take-up reel | PN1250-PN2500 | PN1600-PN3150 | ||
| Central height(mm) | 1000 | 1000 | ||
3. Features:
3.1. Rigid frame stranding machine adopts Heavy duty frame type Stranding cage, cage supported on self aligning roller bearing on both ends. Totally enclosed gear, centralized lubricating system for bearing, drive to cages. Which improves the smooth operation and reduces noise.
3.2. The rigid stranding machine adopts a constant tension pay-off device for each bobbin to ensure its quality.
3.3. This frame type strander is of high mechanical strength, high reliability, high production efficiency, low energy consumption, compact structure and easy operation.
3.4. Motorised / manual bobbin pintles with safety interlock. Wire-break detection installed for each bobbin.
3.5. The rigid strander adopts frequency converter motor drive that realizes stepless speed regulation, smooth start, no impact when replacing spools and no damage to the machine.
3.6. Manufactured by using materials from domestic and abroad famous factories, the wire stranding machine has long usage life.

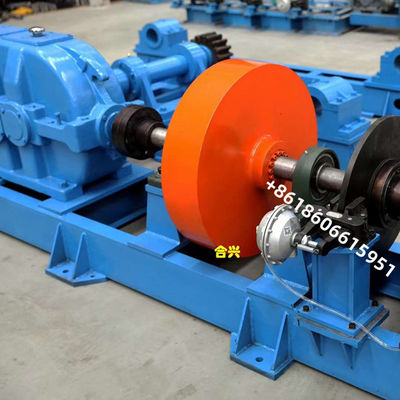

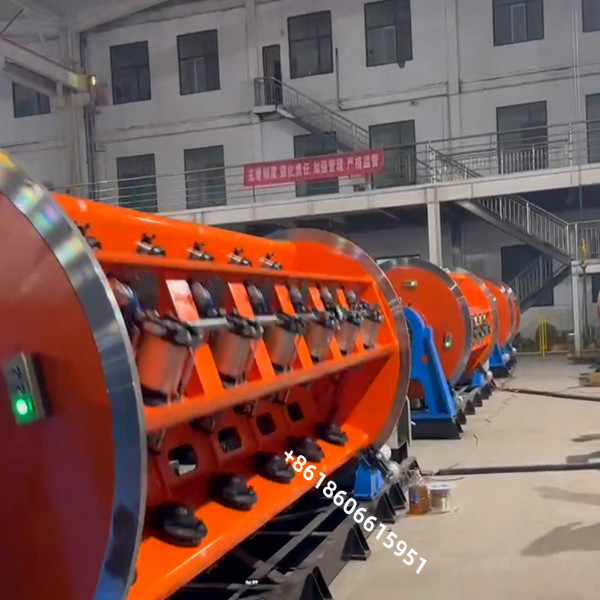

4. Reference picture of rigid strander:
4. About manufacture capacity of Beyde Company:
40 years manufacture experience, welcome to visit our factory at any time!
5. ACCESSORIES / OPTIONS:
6. ELECTRICAL / ELECTRONIC FEATURES:
