| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | 2500 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | container |
| Delivery Time: | 120 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Usage: | Twisting,Stranding,laying Up | Color: | Customized |
|---|---|---|---|
| Name: | 2500bobbin Drum Twister | Application: | Stranding,armoring,Armouring And Laying Big Cable |
| Warranty: | 2 Years | Voltage: | 380V |
| With 96pcs Steel Wire Armoring(kn): | 5000 | Maximum Linear Speed(rpm): | 50 |
| Plc: | SIEMENS | Taping Pitch(mm): | Step-less,adjustable |
| Central Pay Off Drum Diameter: | 2500 | Cage Rotate Speed: | 44 |
| Side Pay Off Drum Diameter: | 2500 | Motor: | Siemens |
| Max After Stranding Diameter: | 150(mm) | ||
| High Light: | Cable Laying Up drum twister machine,High Performance drum twister machine,High Performance drum twister cable machine |
||

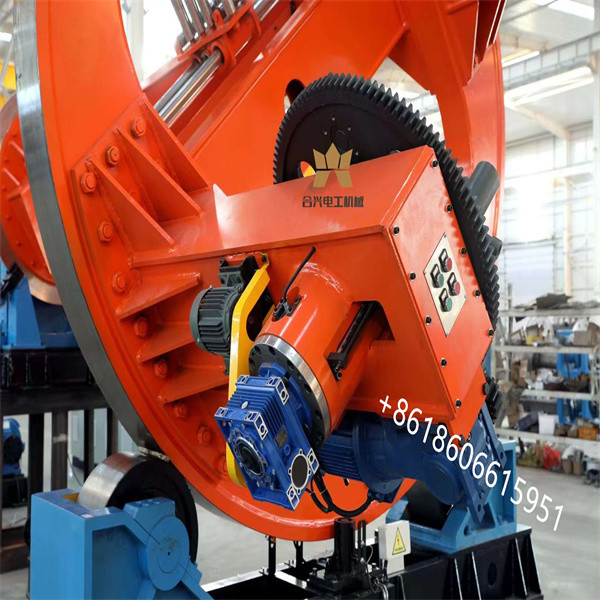

Quality Drum Twister Cable Machine JPD2500 Cable Laying Up Machine
1. Use:
This machine is mainly used for the stranding of large cross-section and long power cables and split conductors, as well as the wrapping of non-metallic tapes and steel tape armouring of cables. This machine has the function of steel wire armouring and copper wire screening within 96 heads
2.Main technical parameter:
| 2.1 | Max laying OD | Φ25～Φ140mm |
| 2.2 | Laying pitch range | 200-5000mm |
| 2.3 | Full machine max rotation speed | 30r/min |
| 2.4 | Traction line speed | 33m/min |
| 2.5 | Max traction force | 5T |
| 2.6 | Non-metal taping head max rotation speed | 650r/min |
| 2.7 | Non-metal taping head pitch(stepless adjustable) | 20-208mm |
| 2.8 | Metal taping head max rotation speed | 550r/min |
| 2.9 | Metal taping head pitch (stepless adjustable) | 20-305mm |
| 2.10 | Pay-off bobbin size | PN1600～PN2000 |
| 2.11 | Take-up bobbin size | PN2500～PN315 |
| 2.12 | Filling rope from |
external diameter × aperture × width F500 × F40 × 400mm (10 balls) |
|
Disc diameter × aperture × Outer gear F800 × F52 × 500mm (4 balls) |
||
| 2.13 | 2500 Pay-off rotation Motor power | 22KW(AC variable frequency motor) |
| 2.14 | 2000 Pay-off rotation Motor power | 4x18.5 KW(AC variable frequency motor) |
| 2.15 | Non-metal taping head Motor power | 11KW(AC variable frequency motor) |
| 2.16 | Steel tape armouring motor power | 22KW(AC variable frequency motor) |
| 2.17 | caterpillar motor power | 2x22KW(AC variable frequency motor) |
| 2.18 | Cage rotation motor power | 55KW(AC variable frequency motor) |
| 2.19 | Machine center high | 1000mm |
3.Main Component
| 3.0 | 2000 rotation pay-off frame | 4 set |
| 3.1 | 2500 rotation pay-off frame | 1 set |
| 3.2 | # type through wire frame | 5 set |
| 3.3 | Guide roller rack | 1 set |
| 3.4 | Filling rope rack | 2 set |
| 3.5 | Three row assembling die holder | 1 set |
| 3.6 | 48+48 head steel wire pay-off rack | 2 set |
| 3.7 | Steel wire armouring head | 1 set |
| 3.8 | Φ600 double reel taping machine | 1 set |
| 3.9 | Φ800 steel tape taping machine | 1 set |
| 3.10 | 5T Rotation pneumatic Caterpillar | 1 set |
| 3.11 | 3150 Drum type take-up and arrange line rack | 1 set (Hydraulic loading bobbin system) |
| 3.12 | Pneumatic Hydraulic system | 1 set |
| 3.13 | Safety fence | 1 set |
| 3.14 | Electrical control system | 1 set |
4. Electric control system
4.12.1 Power supply voltage: three-phase five wire system, 380V (± 10%), 50Hz, single-phase control voltage 220V.
4.12.2 The linkage mode of the whole machine adopts control, and PLC and touch screen are used to coordinate the operation of each part of the motor.
4.12.3 Various process parameters can be set, modified and displayed on the touch screen.
4.12.4 The machine is equipped with the following protection links:
4.12.4.1 Horizontal protection of each pay off rack fork;
4.12.4.2 Fault alarm of AC speed regulating device;
4.12.4.3 Reset protection of hydraulic lifting table;
4.12.4.4 Over range protection of cable arrangement;
4.12.4.5 Safety protection of protective cover;
5. Main features
5.1. The machine adopts touch screen and programmable controller to uniformly command and manage the startup, operation and synchronous rotation of motors in each part of the whole machine.
5.2 AC variable frequency motor shall be adopted for paying off motor, winch rotating motor, winding motor, traction motor and winding and laying motor.
5.3. The cable pitch can be set, modified and displayed on the touch screen. The left and right cable arrangement, inching and rapid movement adjustment can be set on the touch screen.
5.4. The pay off frame of the machine adopts a separate motor, which is convenient for installation, operation and maintenance. It can rotate synchronously with the rotating take-up frame, or it can jog alone.
