Easy Operation Planetray Stranding Machine For Copper Wire Cable Manufacturing Machine

Name: Easy Operation Planetray Stranding Machine For Copper Wire Cable Manufacturing Machine
Brand: Beyde Trading Co.,Ltd
SKU: 500/37
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 500/37

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: T/T, D/P, D/A, L/C

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Wire Cable Planetary Stranding Machine, Easy Operation Planetary Stranding Machine, Copper Wire Cable Planetray Stranding Machine


Usage:	Stranding	Color:	Customized
Application:	Cable Making Industry	Voltage:	380V
Wire Material:	Copper Or Al,Steel Wire	Warranty:	12 Months
Function:	Control Cable,power Cable	Stranding Pitch:	Step-less
Plc:	Siemens	Bearing:	NSK/SKF

Usage:	Stranding
Color:	Customized
Application:	Cable Making Industry
Voltage:	380V
Wire Material:	Copper Or Al,Steel Wire
Warranty:	12 Months
Function:	Control Cable,power Cable
Stranding Pitch:	Step-less
Plc:	Siemens
Bearing:	NSK/SKF

Product Description

Convenient Planetary Stranding Machineeasy Operation Planetray Stranding Machine for Copper Wirecable Manufacturing Machinecable Manufacturer Equipment Stand

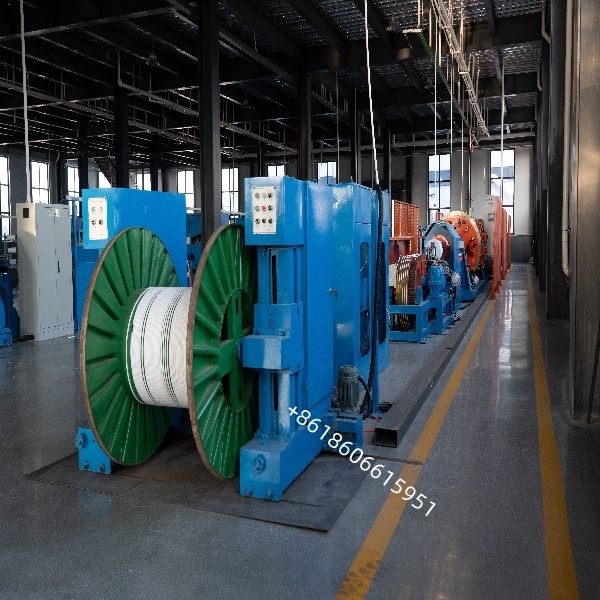

Easy Operation Planetray Stranding Machine For Copper Wire Cable Manufacturing Machine 0

Feature

1. Experience unrivaled precision with our pay-off tension mechanical friction control, allowing you to easily adjust the tension size for optimal performance.

2. The cage boasts a robust shaft structure, featuring a user-friendly manual clamping mechanism and a reliable self-locking function, ensuring both high reliability and effortless operation.

3. Advanced centrifugal break protection enhances operational safety, providing peace of mind.

4. A dedicated motor powers the gear pump to effectively lubricate the gear transmission, promoting longevity and efficiency.

5. Each strand comes with a vertical protective cover, offering superior protection and durability.

Model Main Specification	JLY400	JLY500	JLY630
Single wire diameter	Φ1.2-Φ5mm	Φ1.5-Φ5mm	Φ2.0-Φ8.0mm
Max stranded diameter	Φ50mm	Φ45mm	Φ60mm
RPM	40-94r/min	33-80r/min	22-70r/min
Stranding pitch	25-1005mm	45-1473mm	76-1330mm
Line speed	39m/min	50m/min	48m/min
Pay off drum size in cage	PN400mm	PN500mm	PN630mm
Central pay off drum size	PN400-630mm	PN400-630mm	PN400-630mm
Take up drum size	PN1250-2000mm	PN1600-2000mm	PN1600-2000mm

Application of the machine
This machine is widely used in a variety of multi-cores control cables and armored. The cross-section of the wire core is 1.5-6mm2.

1. High rigid, high speed, and low inertia.

2.100% Back twist design insure that no abrasion damage while stranding.

3. Most advanced emergency stop device.

4. Various PLC electrics are optional.

5. Constant Bobbin back tension is achieved by a positive device & Single bobbin rotation is electronically sensed for control the required tension. In addition, a magnetic tension control system is optional which is cheaper than the pneumatic mode.

5. Planetary stranding machine is qualified for any wire/cable processing job

Easy Operation Planetray Stranding Machine For Copper Wire Cable Manufacturing Machine 2

Easy Operation Planetray Stranding Machine For Copper Wire Cable Manufacturing Machine 3

3. Machine main electric brand
Motor: Siemens (china) Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2-inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jin hu Company.
Bearing: Japan NSK or another same-quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, brands, etc.

BEYDE Trading Co.,Ltd operates three state-of-the-art factories, sprawling over 120,000 square meters in Nanhai District, Foshan. Our esteemed technical administration team, with over a decade of expertise in the wire and cable equipment industry, is complemented by seasoned engineers and skilled craftsmen. At the heart of our company lies a passion for innovation and groundbreaking R & D in electrical machinery. Our impressive portfolio includes: cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries. Our market presence extends beyond domestic borders, reaching into Asia, Southeast Asia, Africa, and more.
