Product Details
Place of Origin: CHINA
Brand Name: BEYDE
Model Number: 630/1+6+12+18+24
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: CONTAINER
Delivery Time: 120 DAYS
Payment Terms: T/T
Supply Ability: 200 SET/YEAR
Usage: |
Stranding,Twisting |
Color: |
Customized |
Name: |
Rigid Frame Wire Cable Stranding Machine |
Application: |
Copper Or Aluminum Conductors Stranding |
Wire Material: |
Copper,aluminum,steel |
Voltage: |
380V/415V 50/60HZ |
Power: |
380-415/440 V,380V 50HZ |
Plc: |
SIEMENS |
Warranty: |
12 Months |
Type: |
Automatic Machine |
Usage: |
Stranding,Twisting |
Color: |
Customized |
Name: |
Rigid Frame Wire Cable Stranding Machine |
Application: |
Copper Or Aluminum Conductors Stranding |
Wire Material: |
Copper,aluminum,steel |
Voltage: |
380V/415V 50/60HZ |
Power: |
380-415/440 V,380V 50HZ |
Plc: |
SIEMENS |
Warranty: |
12 Months |
Type: |
Automatic Machine |

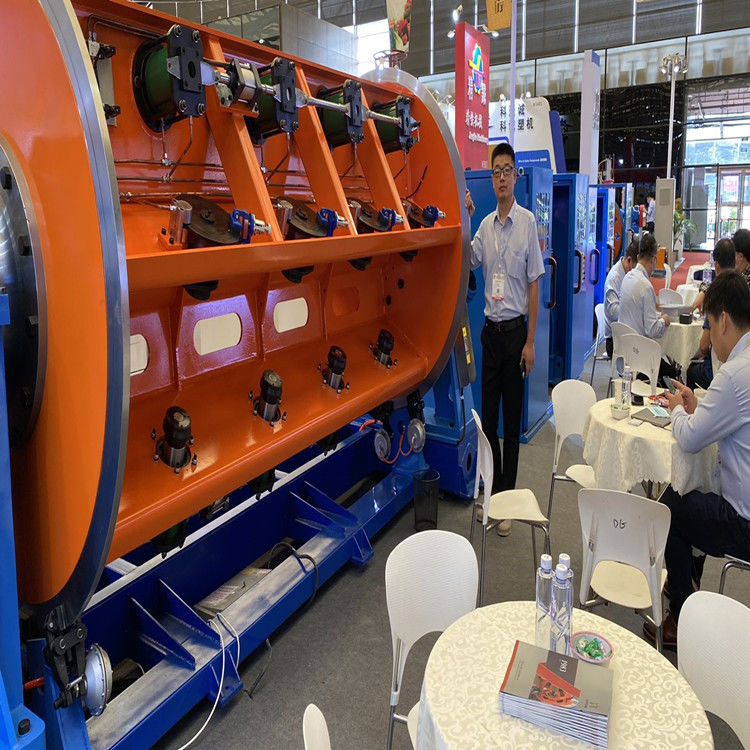

Durable Manufacture Individual Motor Driven Type Rigid Frame Stranding Machine
| Model | JLK-630 | JLK-710/720 | ||
| Diameter of single wire(mm) | Copper | Φ1.5-Φ5.0 | Φ1.5-Φ5.0 | |
| Copper | Φ1.8-Φ5.0 | Φ1.8-Φ5.0 | ||
|
Maximum cross-section (mm²) |
Copper | 800 | 800 | |
| Aluminum | 1000 | 1000 | ||
| Maximum stranded conductor OD(mm) | Φ45 | Φ45 | ||
|
Maximum rotating speed (RPM) |
6B | 192-218 | 146-160 | |
| 12B | Full loaded | 170-192 | 146-160 | |
| 18B | 150-170 | 121-133 | ||
| 24B | Empty loaded | 130-147 | 100-100 | |
| 30B | 117-132 | 83-91 | ||
| Stranding cage pitch step-less can be set on the touching screen | All the cages | Step-less, adjustable | Step-less, adjustable | |
| Stranding cage motor power(KW) | 6B | 55 | 75 | |
| 12B | 75 | 90 | ||
| 18B | 90 | 110 | ||
| 24B | 110 | 132 | ||
| 30B | 132 | 160 | ||
| Pre-twisting& compacting | Pitch (mm) | 400-3000 | 400-3000 | |
| Motor power (KW) | 18.5 | 18.5 | ||
| Taping device | Maximum speed(RPM) | 500 | 500 | |
| Taping pitch(mm) | Step-less, adjustable | Step-less, adjustable | ||
| Tape reel(mm) | Φ600XΦ80 | Φ600XΦ80 | ||
| Motor power(KW) | 11 | 11 | ||
| Tape width(mm) | 15-60 | 15-60 | ||
| Capstan | Capstan wheel diameter(mm) | Φ2500 | Φ2500 | |
| Maximum linear speed(m/min) | 40 | 40 | ||
| Maximum haul-off force(N) | 15000 | 15000 | ||
| Motor power(KW) | 110 | 110 | ||
| Center payoff reel | PN800-PN1600 | PN1000-PN2000 | ||
| Take-up reel | PN1250-PN2500 | PN1600-PN3150 | ||
| Central height(mm) | 1000 | 1000 | ||
1. Who are we?
Shineworld is based in Hebei, china.Factory is located in Hebei.Established in 1983, with 40 years of experience in wire and cable field trade.It only takes 1 hour from our company to the nearest airport. Welcome to visit our company!
2. How can we guarantee quality?
Online inspect facotry ,production, shipment,and aftersales service in 24 hours.
Always a pre-production sample before mass production.
Always final inspection before shipment;and provide full-process visualization services.
Mechnical parts gurantee 12months, elcctrical parts gurantee 6 months.
Dispatch skilled engineer on spot for installtion ,commisoning and maintanace.
3.What can you buy from us?
Raw materials for wire and cable.
Extruderline for insulation and sheathing.
Pe sheet lagging.
Trunkey projects for wire cable plan.
4. How long is your delivery time?
Generally, 3-7 days for goods in stock and 10-30 days for goods after realsing order.
Make the delivery asap with guaranteed quality.
5. Will the price be cheaper if the order is placed in bulk?
Of course ,will make 5-10% discount!
6. What services can we provide?
Plant solution design and machine design.
Some free samples.
Technical support.
Installtion and commmsioning.
After sales service.
Packaging customization and other customized services.
For details, you can contact online customer service for communication.
