1600 To 4000mm Drum Twister Cable Machine High Speed

Name: 1600 To 4000mm Drum Twister Cable Machine High Speed
Brand: Beyde
SKU: 3150mm
Rating: 4.9 (129 reviews)

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 3150mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                1600mm drum twister cable machine, drum twister cable machine high speed, 4000mm drum twister machine


Control System:	PLC+HMI	Operation System:	Automatic
Pay-off System:	PN1250-PN2500	Power Supplier:	380V
Product Name:	Drum Twister Line	Speed:	50rpm
Stranding Mode:	Single/Multiple	Take-up System:	PN3150
Tension Control:	Pneumatic	Wire Size:	Max 150mm2
Stranding Pitch:	Stepless Adjust	Warranty Time:	12 Months

Control System:	PLC+HMI
Operation System:	Automatic
Pay-off System:	PN1250-PN2500
Power Supplier:	380V
Product Name:	Drum Twister Line
Speed:	50rpm
Stranding Mode:	Single/Multiple
Take-up System:	PN3150
Tension Control:	Pneumatic
Wire Size:	Max 150mm2
Stranding Pitch:	Stepless Adjust
Warranty Time:	12 Months

Product Description

High Speed Drum Twisters From 1600 To 4000mm Real Manufacturer In China

1. Application:

This machine is mainly used for large section and long power cables, stranded cables of divided conductors, non-metallic tape wrapping of cables, and steel tape armouring.

2. Main features

The machine adopts touch screen and programmable controller to uniformly command and manage the startup, operation and synchronous rotation of motors in each part of the whole machine.
AC variable frequency motor shall be adopted for paying off motor, winch rotating motor, winding motor, traction motor and winding and laying motor.
The cable pitch can be set, modified and displayed on the touch screen. The left and right cable arrangement, inching and rapid movement adjustment can be set on the touch screen.
The pay off frame of the machine adopts a separate motor, which is convenient for installation, operation and maintenance. It can rotate synchronously with the rotating take-up frame, or it can jog alone

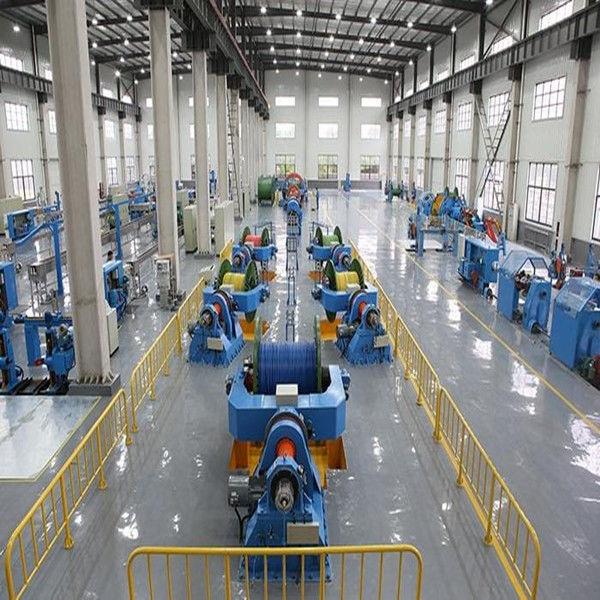

1600 To 4000mm Drum Twister Cable Machine High Speed 0

3. Main paramter:

2500 rotation pay-off frame	5 set
Horn guide line frame	5 set
3 hole type through wire frame	1 set
5 hole type through wire frame	1 set
Filling rope rack	2 set
Phase detection device	1 set
Three row assembling die holder	1set
96 head steel wire pay-off rack	1 set
Steel wire guide line frame	4 set
Steel wire rotating die holder	1 set
Steel wire armouring head	1 set
Φ600 double reel taping machine	1 set
Φ800 steel tape taping machine	1 set
5T Rotation pneumatic Caterpillar	1 set
2500 Drum type take-up and arrange line rack	1 set (Hydraulic loading bobbin system)
Pneumatic Hydraulic system	1 set
Safety fence	1 set
Electrical control system	1 set

4. Electric control system

Power supply voltage: three-phase five wire system, 380V (± 10%), 50Hz, single-phase control voltage 220V.
The linkage mode of the whole machine adopts control, and PLC and touch screen are used to coordinate the operation of each part of the motor.
Various process parameters can be set, modified and displayed on the touch screen.
The machine is equipped with the following protection links:
Horizontal protection of each pay off rack fork;
Fault alarm of AC speed regulating device;
Reset protection of hydraulic lifting table;
Over range protection of cable arrangement;
Safety protection of protective cover;
Air pressure protection;
Broken and finished tape protection.
