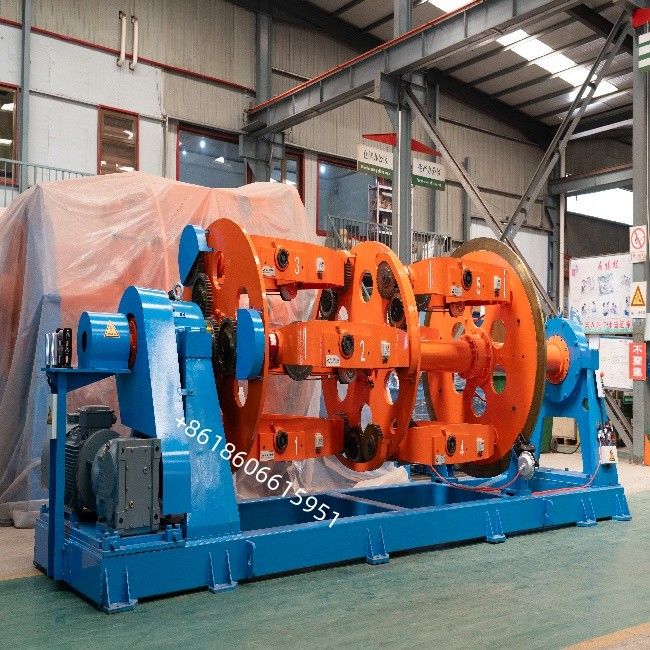

Planetary Stranding Machine ​Control & Instrumentation Cables JLY-400/6+12+18+24



1. Introduction to Planetary Strander

A ​planetary strander​ is a specialized machine used in the wire and cable industry to twist multiple wires or conductors into a compact, uniform helical structure. Unlike linear stranding machines, planetary stranders employ a ​rotational and orbital motion, where the stranding spindles rotate around a central axis while also spinning individually. This unique movement ensures ​precise layering​ and ​consistent lay length, making it ideal for producing high-quality cables with excellent electrical and mechanical properties.

Planetary stranders are widely used in:

  • Power cables​ (medium & high voltage)
  • Control & instrumentation cables
  • Communication cables​ (coaxial, twisted pair)
  • Specialty cables​ (submarine, mining, aerospace)

2. Key Parameters of a Planetary Strander

The performance of a planetary strander depends on several critical parameters, which vary based on the application and production requirements. Below are the main specifications:

Parameter Description Typical Range
Number of Spindles Determines how many wires can be stranded simultaneously (e.g., 4, 6, 12, 24 spindles). 4 - 24 spindles
Wire Capacity Maximum wire diameter the machine can handle. 0.05 mm - 6.0 mm
Lay Length Adjustment Controls the pitch (distance for one complete twist). Adjustable (0.1 mm - 50 mm)
Stranding Speed Rotational speed of the planetary head (affects production rate). 50 - 300 rpm (variable speed)
Take-Up Capacity Maximum cable diameter the machine can wind. 50 mm - 500 mm (or more for large machines)
Power Requirement Motor power needed for operation. 5 kW - 50 kW (depending on size)
Tension Control System Ensures uniform wire tension during stranding. Automatic or manual tensioners
Frame Material Construction material for durability. Steel or stainless steel (with anti-corrosion coating)
Control System CNC or PLC-based automation for precision. Basic, semi-automatic, or fully automatic


3. Types of Planetary Stranders

Based on application and automation level:

  1. Manual Planetary Strander​ – Basic model with manual adjustments, suitable for small-scale production.
  2. Semi-Automatic Strander​ – Features programmable lay length and speed but requires operator supervision.
  3. Fully Automatic Strander​ – CNC-controlled with real-time monitoring, ideal for high-volume production.
  4. High-Speed Strander​ – Optimized for rapid production with advanced tension control.
  5. Compact Strander​ – Space-saving design for small workshops.

4. Advantages of Planetary Stranders

✅ ​Uniform Stranding​ – Ensures consistent wire distribution and lay length.
✅ ​High Efficiency​ – Faster production compared to linear stranders.
✅ ​Versatility​ – Can handle various wire sizes and configurations.
✅ ​Improved Cable Performance​ – Reduces electrical resistance and enhances mechanical strength.
✅ ​Automation Options​ – Reduces labor costs and human error.


5. Applications

  • Power Transmission​ (HV/MV cables)
  • Data & Telecommunication​ (Ethernet, fiber-optic cables)
  • Automotive Wiring​ (harnesses, battery cables)
  • Specialty Cables​ (submarine, oil & gas, medical devices)

6. Future Trends in Planetary Stranders
