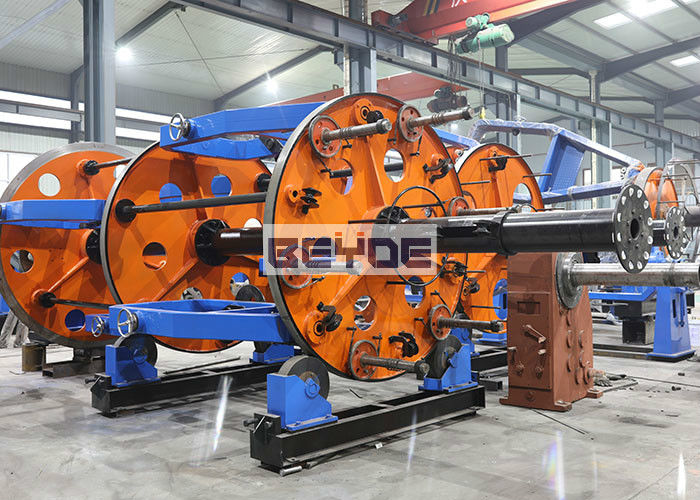

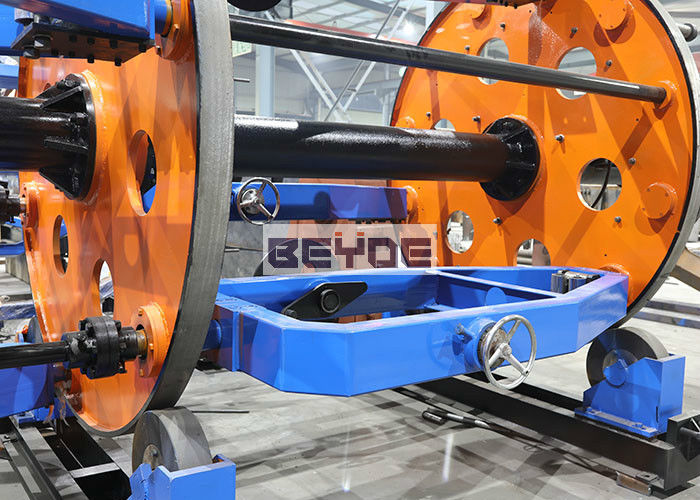

CLY Cradle cable laying up machine is used for cabling medium&low power cables, telephone cables, control cables or mining cables. This machine is suitable for laying up the multi-cores(3-7cores), section can be round or sector.The machine is mainly used to strand, wrap and armor big section area cables with 3 / 4 / 5 / 6 cores. The shape of the conductor can be circular, scalloped or cup. When producing circular cables, insulated wires can be processed with back twisting, while sector-shaped cables without it.
1.The machine is with low cost compare to other stranding machines, but produced by the machine with high quality.
2.The machine is equipped with back-twist stranding, electronic pre-twist, bobbin is clamped and released by electromotion.
3.The machine is equipped with PLC control system for pre-setting laying up pitch and for speed synchronization with the take up unit.
4.CAT(belt) type haul-off unit driven by independent motor.
5.The machine can be equipped with taping or armoring device.
|Specification||CLY1000 1+1+3||CLY1000 1+6||CLY1250 1+1+3||CLY1250/1+6||CLY1600/ 2+3||CLY2000/2+3|
|Dia. Of inlet wire(mm)||5mm-20mm||6mm-25mm||10mm-35mm||15mm-45mm|
|Lay up Dia.(mm)||60mm||80mm||100mm||120mm|
|Frame rotation speed||10-25||5-13||3.9-11.2|
|Armouring speed (r/min)||188-419||188-419|
|Armouring pitch (mm)||11.9-195.9||13-23|
