Multi Function Wire Stranding Machine Take Up Bobbins PN1600-630

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 630
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Bobbins: Take Up Armouring: PTFE Tubes
PLC: Optional Usage: Stranding
High Light:

wire drawing equipment

,

copper wire manufacturing machine

Multi-Function Planetary type wire Stranding Machine Take Up Bobbins Size PN1600-630

Application Areas

Machine Description

State of the art stranding cage technology

The stranding cages are, up to certain bobbin sizes or numbers of bobbins, of compact design and carried in encircling bearing style drive and bearing housings. The results are high speeds, low power losses and simplified machine maintenance. Larger stranding cages are supported by heavy duty underroller bearings. Cages are suitable to accommodate bobbins with flange diameters ranging from 315 to 2800 mm and weighing 40 tonnes max. The bobbin braking systems are designed to meet the particular requirements of the application. Different systems available offer simple measurement and indication of the back tension in the wire or strand, adjustment of the tensions by the operator from the machine control desk and automatic tension control.

State of the art drives technology

Separate drives to the stranding cage and the haul-off enable a very wide range of lay-lengths to be covered. Using modern digital control technology, infinitely variable and reproducible lay-lengths can be set from the control desk. The back-twist drive makes variable back-twist possible within a 65 to 135% range.The use of special speed modulation gearboxes enables high back-twist moments to be transmitted.Differing degrees of back-twist are possible within a single cage. Different cages within a machine can be infinitely variably controlled in relation to each other.

A special loading drive enables the cage to be rotated into place and stopped in each loading position.

State of the art machine sub-assemblies and auxiliary equipment

Technology essential for a high-performance stranding machine includes:

State of the art automation

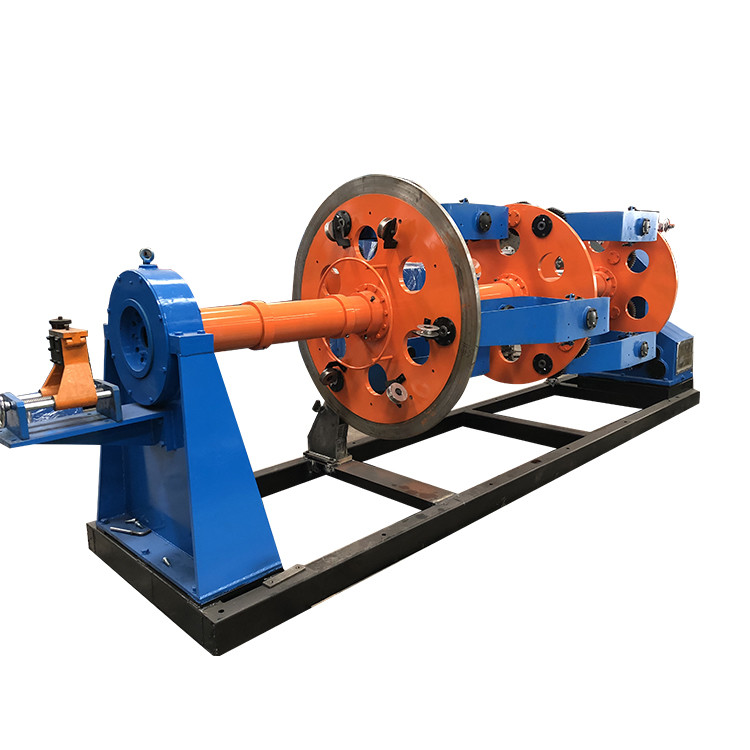

Multi Function Wire Stranding Machine Take Up Bobbins PN1600-630 0
