High Rotation Steel Wire Planetary Strander Stage Gear Box Driven

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Certification: CE/ISO9001
Model Number: 96 bobbins
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: Customized Warranty:: 12 Months
PLC: Optional Usage: Stranding
High Light:

wire twisting machine

,

cable twisting machine

High Rotation Speed Wteel Wire or Cable Planetary Stranded Machine From China



Main feature:

1:The machine is suitable for stranding bare aluminumcopper , aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables. Sector shapped conductors,round compacted ,single core prespiralled.



2:reels are arranged quartering around the cages. The centeral shaft does not support the weight of reels. The equipment has high rigidity ,high-powered, high speed.low moment of inertia.



3:ir is driven by 36-stage gear-box,the tow wheels of double wheel capstan are overhung position supported on shafts. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.



4:each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.the machine is especially suitable for manufacturing power cable and cross-linked cable

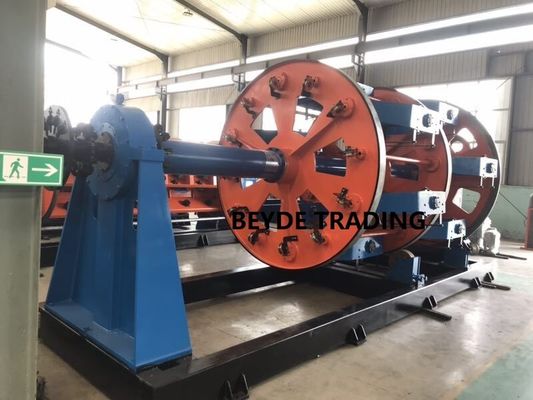

High Rotation Steel Wire Planetary Strander Stage Gear Box Driven 0



Technical parameter:

Machine type 500
Stranded single wire Dia.(mm) copper 1.5~4.5
aluminum alloy 1.8~5.0
aluminum 1.8~5.0



Max .cage rotate speed(rpm)



6B 147
12B 147
18B 147
24B 147
30B 147
Central pay-off bobbin size PN500~2000
Pay-off bobbin in cage PND500
Take-up bobbin size PN1600~PN2500
Control type PLC+ touch screen
