Filling Stand Laying Up Machine , Long Distance Cable Production Line

Product Details

Place of Origin: Hejian,China

Brand Name: Beyde

Model Number: 1250-3

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiate

Packaging Details: Container loading with safety packing

Delivery Time: 70-150 Days after receive deposit

Payment Terms: L/C, T/T

Supply Ability: 120 Set/Year

Get Best Price
Product Details
Highlight:

cable laying equipment

,

core laying machine

Color:
Customized
Warranty::
12 Months
PLC:
Optional
Usage:
Stranding
Color:
Customized
Warranty::
12 Months
PLC:
Optional
Usage:
Stranding
Product Description

Laying-up Type electric cable production line long distance cable making machine

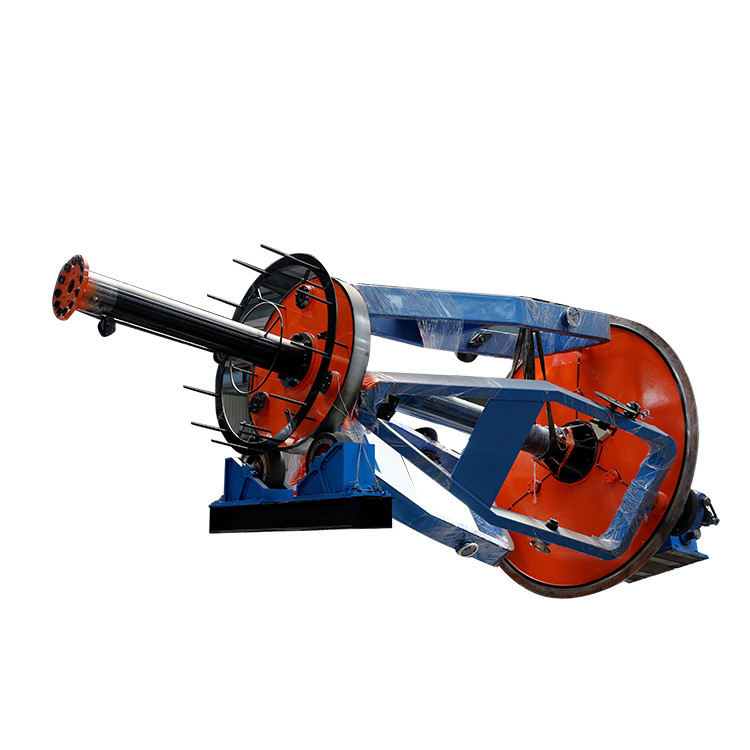

Filling Stand Laying Up Machine , Long Distance Cable Production Line 0

Technical Parameter

Specification CL1000/1 1 3
CL1000/1 6
CL1250/1 1 3
CL1250/1 6
CL1600/2 3 CL2000/2 3
Dia. Of inlet wire(mm) 5-20 6-25 10-35 15-45
Lay up Dia.(mm) 60 80 100 120
Frame rotation speed 10-25 5-13 3.9-11.2
Lay-up pitch(mm) 208-3680 420-7569 362-6969
Taping Speed(r/min) 188-419 188-419
Taping pitch(mm) 11.9-195.9 13-213
Armouring speed (r/min) 188-419 188-419
Armouring pitch (mm) 11.9-195.9 13-213
Capstan Dia.(mm) 2000 2000 2500
Linear speed(m/min) 4.98-36.82 5.31-40.08
Size of take-up reel(mm) PL2000 PL2500 PL3150





Application

This drum twister electric cable manufacturing machine mainly used for twisting large section and length power cable production, making roung or sector core stranding process, also can use for armouring steel wire or copper shield.



Component

Rotating pay-off, wire guiding device, assembling plate, filling stand, steel wire pay-off device, steel wire armouring head, die holder, taping machine, rotary CAT, drum stranding take-up, transmission system and electric control system
