Product Details
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 1600
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: |
Customized |
Warranty:: |
12 Months |
PLC: |
Optional |
Usage: |
Stranding |
Color: |
Customized |
Warranty:: |
12 Months |
PLC: |
Optional |
Usage: |
Stranding |

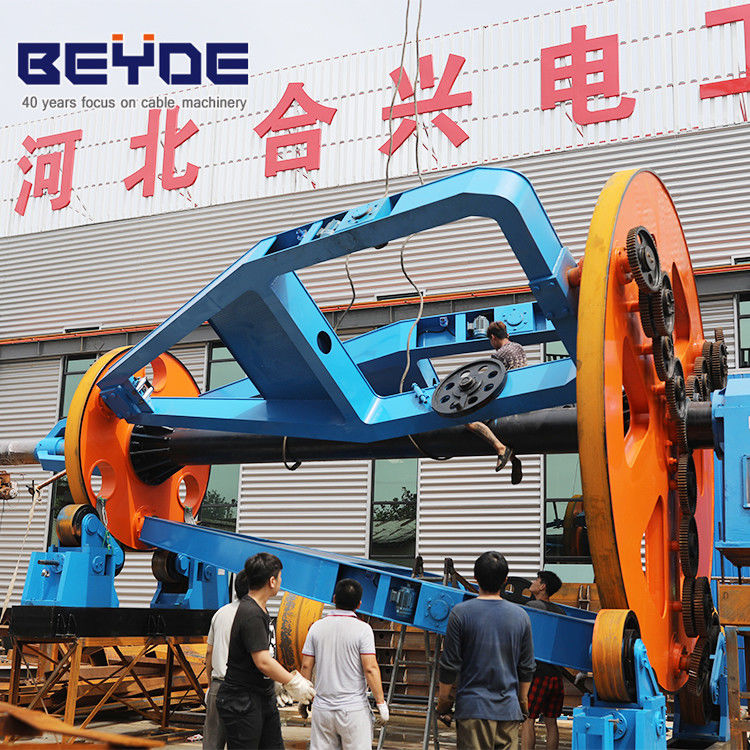

The quality and performance of Core Laying Up Machines cannot be questioned as these are tested on varied parameters before sent out in the markets. Premium quality raw materials are used in fabrication of these Core Laying Up Machines. Consequently, we are identified as one of the leading Core Laying Up Machine Manufacturers, Suppliers and Exporters from India.
|
Model |
Pintle Type |
|---|---|
|
Drum |
1250 mm , 1600 mm, 1800 mm |
|
Drive |
40 H.P. , 50 H.P., 60 H.P. |
|
Back Twist Arrangement |
The Machine can run in rigid and Planetary type with geared motor. |
|
Speed |
10 R.P.M / 20 R.P.M / 25 R.P.M |
|
Direction of Cage |
Clock Wise and Anti Clock Wise |
|
Cage Support |
One end Heavy duty gear box with bearing and other on under roller. |
|
Lay |
400-2500 |
|
Die Holder |
Block – 03 |
|
PVC Tape / Thread Tapping Head |
1 |
|
No. of Pads |
Two |
|
Direction of Rotation |
Reversible by Lever |
|
Drive |
DC / AC |
|
Haul of Unit |
Cater Pillar Type |
|
Effective length |
2mtr. To 2500 mtr. |
|
Max. opp. |
125 |
|
Drive |
From Line Shaft through Gear Box or A.C Drive. |
|
Speed |
3 mtr, to 20 mtr. Per minute |
|
Take UP |
Pintle type |
|
Drum |
2000 to |
|
|
Motorized
|
