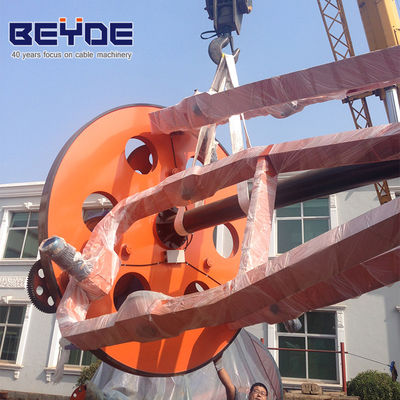

High Performance Cable Making Machine Traction Device Apply To Rubber Cable

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 1600-2004
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: Customized Warranty:: 12 Months
PLC: Optional Usage: Stranding
High Light:

cable laying machine

,

cable laying equipment

Excellent Performance Cable Stranding Laying-up Machine for rubber cable

Product Description

a)Application:

The machine is used for stranding or armouring all kinds of different cross-section core rubber cable, power cable, control cable and charging pile cable production process.

b) Component:

Central pay-off, frame host, assemble holder, taping device, armouring device, meter counter, traction device, take-up and traverse device, transmission and electric control sys

c) Mail Character:

1. More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.

2. Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling circle , planet retreat-spiralling and sprocket retreat-spiralling.

3. The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.

d) Technical Parameter

Specification CL1000/1 1 3
CL1000/1 6
CL1250/1 1 3
CL1250/1 6
CL1600/2 3 CL2000/2 3
Dia. Of inlet wire(mm) 5-20 6-25 10-35 15-45
Lay up Dia.(mm) 60 80 100 120
Frame rotation speed 10-25 5-13 3.9-11.2
Lay-up pitch(mm) 208-3680 420-7569 362-6969
Taping Speed(r/min) 188-419 188-419
Taping pitch(mm) 11.9-195.9 13-213
Armouring speed (r/min) 188-419 188-419
Armouring pitch (mm) 11.9-195.9 13-213
Capstan Dia.(mm) 2000 2000 2500
Linear speed(m/min) 4.98-36.82 5.31-40.08
Size of take-up reel(mm) PL2000 PL2500 PL3150
