Product Details
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: Side Loading Bobbin System
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: |
Customized |
Warranty:: |
12 Months |
Single Wire Diameter: |
Cu: Ø 1.2-5.0mm |
Usage: |
Stranding |
Cage Speed: |
165 R/min |
Capstan Wheel: |
2500mm |
Color: |
Customized |
Warranty:: |
12 Months |
Single Wire Diameter: |
Cu: Ø 1.2-5.0mm |
Usage: |
Stranding |
Cage Speed: |
165 R/min |
Capstan Wheel: |
2500mm |
Application:

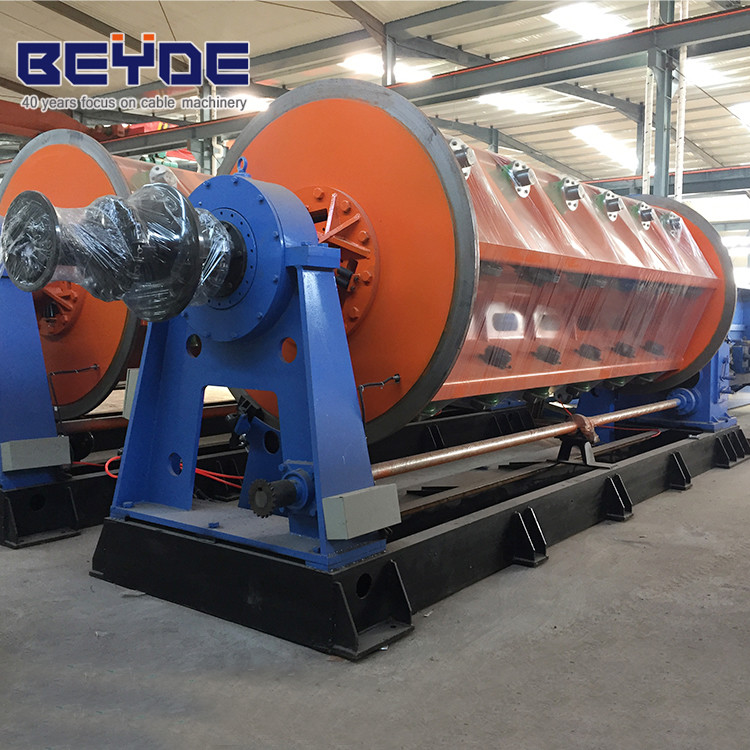

This frame strander is mainly used in the production of large length bare aluminum, bare copper wire and steel core aluminum strand, the circular conductor and the conductor and other electric cable.
| 630 | 710 | 800 | |
| Single wire diameter | Cu: Ø 1.2-5.0mm Al: Ø 1.5-5.0mm |
Cu: Ø 1.2-5.0mm Al: Ø 1.5-5.0mm |
Cu: Ø 1.2-5.0mm Al: Ø 1.5-5.0mm |
| Max twisting diameter | Ø 55mm | Ø 55mm | Ø 55mm |
| Cage speed | 165 r/min | 165 r/min | 150 r/min |
| Pitch | 38-1110 | 68-1142 | 75-1256 |
| Capstan speed | 6.7-52m/min | 6.1-47m/min | 5.5-43m/min |
| Main motor power | 132KW | 200KW | 250KW |
| Cage bobbin | PND630 | PND710 | PND800 |
| Capstan wheel | 2500mm | 2500mm | 2500mm |
| Take-up bobbin | PN2500, PN2800, PN3150, PN3500mm | ||
| Height of center | 1000mm | 1100mm | 1200mm |
| External dimensions | 45*6m 67*6m |
66*7m 72*7m |
70*7.5m 78*7.5m |
