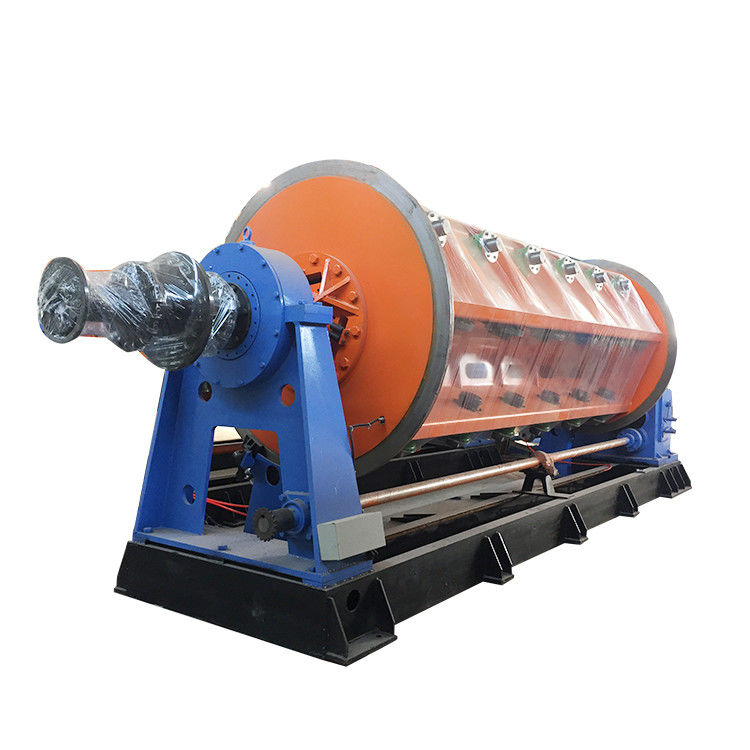

High Speed Armoured Cable Machine , Rigid Frame Strander ISO9001 Approved

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: Side Loading Bobbin System
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Type: 500 / 1+6+12+18+24+30 Warranty:: 12 Months
Line: Rigid Strander Line Usage: Stranding
High Light:

rigid frame stranding machine


rigid frame strander

Rigid Strander Line 500 / 1+6+12+18+24+30High Speed Rigid Frame Cable Wire Strander



1. All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Takeup are separately driven.

2. All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max. 30 minutes.

3. Lay is fed in MMI (Operator touch screen) instead of Gearbox. Any lay value in the range can be set & achieved that ensure easy operation.

4. In Power failure situation, the machine comes to a controlled stop by emergency braking system, enabling the bobbin is held by spring pressure with a secondary positive lock. The release of bobbin is by externally plugged pneumatic compressed Air.

5. Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.

6. Multiple bobbin size available(400,500,630.etc)

7. Mutiple host with mutiple cage number(( optional


Product images



180128 500-00009.jpg 180128 500-00035.jpg 180128 500-00021.jpg
