Product Details
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: Side Loading Bobbin System
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Type: |
JLK-500 |
Warranty:: |
12 Months |
PLC: |
Optional |
Application: |
Steel Wire Armoring |
Type: |
JLK-500 |
Warranty:: |
12 Months |
PLC: |
Optional |
Application: |
Steel Wire Armoring |

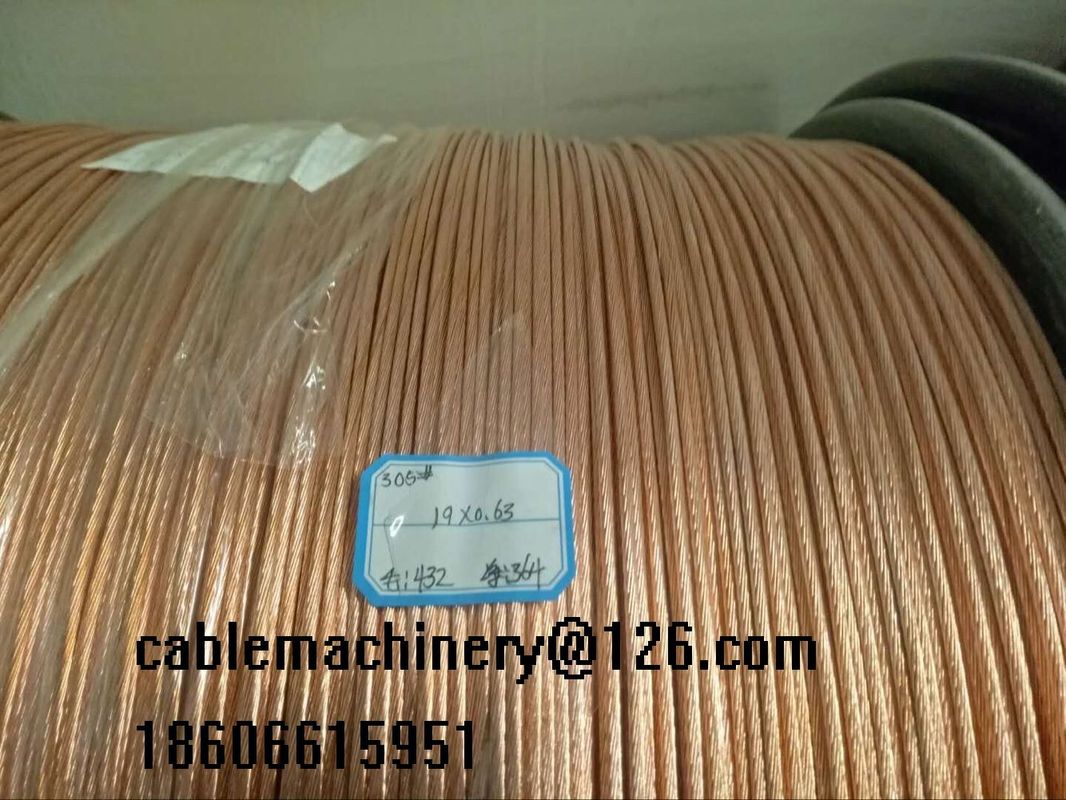

250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction
1. Application
This machine is used for stranding and compacting of copper, aluminum and aluminum alloy conductors of round and sector shapes. And it is used for stranding pre-spiral wires and milliken conductor. It is also used for steel wire armoring of power cable.
2. Type
- Transmission by separate motor / groud shaft.
- Bobbin loading by intergral side-bottom loading / manual single loading
- Assemble body structure / Welding body structure
- Bobbin clamping by pneumatic / motorized
3. Main Technical Specification
| Type | JLK-500 (Ground shaft) (Welding structure) |
JLK-630 (Separate motor) (Assemble structure) |
JLK-760 (Separate motor) (Assemble structure) |
|
| Single conductor dia. | Cu | 1.5~5.0mm | 1.5~5.0mm | 1.5~5.0mm |
| Al | 1.8~5.0mm | 1.8~5.0mm | 1.8~5.0mm | |
| Al alloy | 1.5~5.0mm | 1.5~5.0mm | 1.5~5.0mm | |
| Steel | 0.9~3.2mm | 0.9~3.2mm | 0.9~3.2mm | |
| Max. rotating speed | 6B | 190r/min | 230r/min | 210r/min |
| 12B | 190r/min | 210r/min | 190r/min | |
| 18B | 170r/min | 190r/min | 170r/min | |
| 24B | 150r/min | 170r/min | 150r/min | |
| 30B | 130r/min | 150r/min | 130r/min | |
| Motor power | 6B | 132KW | 90KW | 90KW |
| 12B | 110KW | 110KW | ||
| 18B | 132KW | 132KW | ||
| 24B | 132KW | 132KW | ||
| 30B | 132KW | 132KW | ||
| Max. working linear speed | 40m/min | 40m/min | 40m/min | |
| Pay off bobbin in cage | PND500 | PND630 | PND760 | |
