|Usage:||Stranding,Twisting,Rigid Frame Cable Wire Stranding Machine||Color:||As Requirement|
|Name:||Rigid Frame Wire Cable Stranding Machine,rigid Type Stranding Equipment||Application:||Stranding Wire And Cable|
|Wire Material:||Copper,aluminum,steel||Cage Rotate Speed:||40-156r/min.|

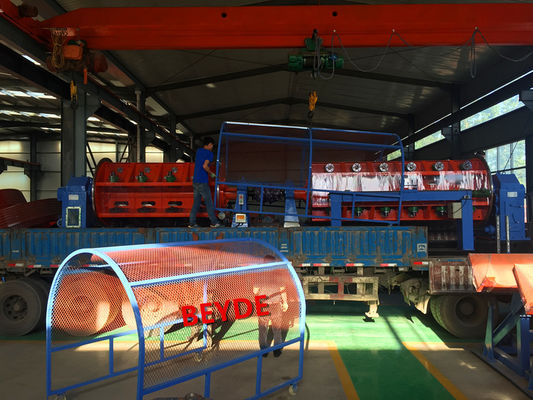

JLK630/6+12+18+24 Rigid Frame Strander With Pre-deformation For Galvanized Steel Wire
High quality and low price 630 19 Wire 1+6+12 Spool Rigid Strander With Gantry Take-up Separate Motor
JLK1+6+12+18/630 Rigid stranding machine
Concentrated load and unload bobbin system
This machine is mainly suitable for the production of large-length bare aluminum, bare copper wire and steel-cored aluminum stranded wire and aluminum alloy wire and section conductor stranded and compacted. round conductor twisted and tight press.The equipment adopts 36-level traction gearbox, double active and double traction device, and the splitter wheel adopts natural branching wire to avoid the wire core wiping during the stranding process. The device pay-off tension is controlled by pneumatic tension to ensure the wire is full. The reel and the empty reel are evenly tensioned, and have a unique function of the completely broken automatic parking device. The disconnected parking is directly controlled to each pay-off reel, and the host automatically stops immediately when the disconnected disk is stopped.
|2.1||Single wire diameter||Copper φ1.5－5.0m|
|2.2||Strand cage rotation speed|
|145r/min, total 6 speed change|
|2.3||Strand pitch||34-950 mm|
|2.4||Traction line speed||62m/min|
|2.5||Main motor power||95KW(AC)|
|2.6||Pay-off bobbin size in frame||PND 630|
|2.7||Traction wheel size||φ2000mm|
|2.8||Central pay-off size||PN1600|
|2.9||Take-up bobbin size||PN2500|
|3.1||φ1600 Pay-off(end shaft type)||1 set|
|3.2||12. bobbins strand cage||Each 1 set|
|3.3||12. bobbin Concentrated loading device||Each 1 set|
|3.4||Assembling die holder||3 set|
|3.5||Compacted head||3 set|
|3.6||Meter counter||1 set|
Main gear box and 36 grade transmission gearbox
|3.8||φ2000 traction device||1 set|
|3.9||φ2500 Portal type take-up device||1 set|
|3.10||Electric control cabinet and operating panel||1 set|
|3.11||Safty protection fence and cover||1 set|
6.12bobbins strand cage
4.2.1 Each front of the cage is equipped with an adjustable pre-button device. The hinged cage has a ground shaft transmission cage gearbox to drive the twisting cage to rotate, and the operating handle can realize the positive and negative rotation and idling of the twisting cage, and the handle change and shifting gear is easy and the positioning is accurate.
4.2.2 When the laod bobbin is concentrated, the hinged cage is rotated and positioned. There is a separate motor to complete. The main motor is connected to the laoding bobbin motor by the clutch. When the clutch is commutating, the two motors are used to control the rotation of the motor and the upper motor respectively. When the clutch is turned to the main The main motor cannot start when the motor shaft is on one side
4.2.3 The positioning of the frame load bobbin is controlled by the contacts on the frame and the proximity switch. The brake is completed by four sets of positioning flat brakes. The braking is efficient and reliable. Each section of the cage is equipped with an independent gas storage tank to ensure the brake and tension system. Air pressure stability.
4.2.4 The disconnected parking device adopts a non-contact probe and directly controls each reel. As long as one of the reels is disconnected, or a certain reel is completed, a signal can be immediately sent to stop the mainframe. Make sure the line is broken after the line is broken
4.2.5 After the centralized load bobbin is clamped by the gas thimble, the reel is tightened and equipped with mechanical safety devices to ensure absolute safety during the production process. At the same time, there is a limit control main motor on the mechanical safety device, and the main motor can only be started when all the safety devices are in the insurance position.
4.2.6 The tension control of the reel adopts pneumatic tension. The tension is automatically controlled by the pressure regulating valve. It automatically switches according to the length signal to ensure uniform tension of all the reels when the reel is full to empty.
4.3 Hydraulic centralized automatic load and unload bobbin device
4.3.1 Concentrating the laod disk, the hydraulic lifting trolley can complete all the processes of turning over, walking and loading the reel in sequence. Through the hydraulic cylinder, the linear sliding rail is completed, the operation is convenient and reliable, and the loading process is fast and efficient.
