Auto Wire Cable Machine , Rigid Stranding Machine 1.3~5.0mm Single Wire Diameter

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 500

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: Container

Delivery Time: 90 Days

Payment Terms: L/C, T/T

Supply Ability: 200 Set/Year

Get Best Price
Product Details
Highlight:

rigid frame stranding machine

,

cable wire manufacturing machines

Usage:
Stranding,Twisting,Rigid Frame Cable Wire Stranding Machine
Color:
As Requirement
Name:
Rigid Frame Wire Cable Stranding Machine,rigid Type Stranding Equipment
Application:
Stranding Wire And Cable
Wire Material:
Copper,aluminum,steel
Cage Rotate Speed:
40-280r/min.
Take-up Reel:
PND1600-PND2500
Usage:
Stranding,Twisting,Rigid Frame Cable Wire Stranding Machine
Color:
As Requirement
Name:
Rigid Frame Wire Cable Stranding Machine,rigid Type Stranding Equipment
Application:
Stranding Wire And Cable
Wire Material:
Copper,aluminum,steel
Cage Rotate Speed:
40-280r/min.
Take-up Reel:
PND1600-PND2500
Product Description

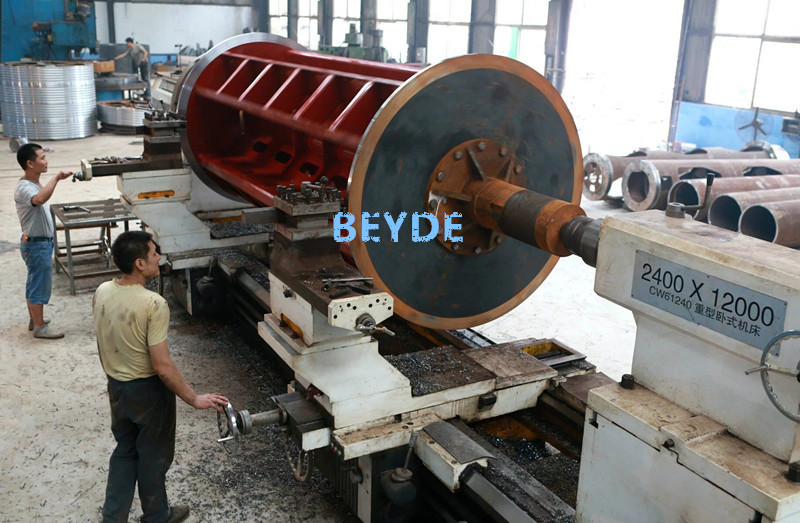

Auto Wire Cable Machine , Rigid Stranding Machine 1.3~5.0mm Single Wire Diameter​



Features:

1) The rigid stranding machine is used for stranding Copper, Aluminum and Aluminium alloy wires and conductors with long length and large cross section.
2) Stranding compressed, compacted round or sector shaped ( straight or pre-spiraling ) as per customer requirements.
3) We also customise this cage type stranding machine in accordance with customers' requirements.

4) Rigid frame stranding is designed with 1+6+12+18+24+30+36 Bobbin Cage.
5) Bobbin: 500mm, 630mm, 710mm DIN 46397 Standard / Modified.
6) Heavy duty frame type rigid cage stranding machine, Cages supported on self aligning roller bearing on both ends. Totally enclosed gear, centralized lubricating system for bearing, drive to cages.

7) High efficiency and speed. Cage max speed 253 RPM. Max line speed 62.3 m / min.
8) Motorised / manual bobbin pintles with safety interlock. Wire-break detection installed for each bobbin.
9) Bobbin group loading using hydraulic floor type. Side trolley loaders is also optional.

Rigid Stranding Machine Parameter:


Model (Rigid Stranding Machine) JLK-500 JLK-630 JLK-710/720
Diameter of single wire Copper φ1.5-5 mm φ1.5-5 mm  φ1.5-5 mm
Aluminum φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm
Maximum stranded conductor OD φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch 6 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
12 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
18 Bobbin Stranding Cage 44-793 mm 63-1056 mm 57-1012 mm
24 Bobbin Stranding Cage 51-924 mm 71-1246 mm 66-1190 mm
30 Bobbin Stranding Cage 57-1028 mm 87-1553 mm 79-1403 mm
Rotating Speed 6 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
12 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
18 Bobbin Stranding Cage 208.5 r/min 155 r/min 142.6 r/min
24 Bobbin Stranding Cage 179 r/min 130.1 r/min 122.3 r/min
30 Bobbin Stranding Cage 161.8 r/min 115.9 r/min 102.7 r/min
Capstan Capstan Wheel Diameter 2000 mm 2000 mm 2000 mm
Maximum Haul-off Force 30 T 30 T 40 T
Pre-spiral Device Pitch 500-2500mm 500-2500mm 500-2500mm
Motor Power 90-180 KW 110-180 KW 130-180 KW
Bobbin Size 500*375*127 630*475*127 710*530*127
Center Payoff Bobbin 1600*800*80 1600*800*80 1600*800*80
Take-up Bobbin 2500*1500*125 2500*1500*125 3150*1900*160
