Sgs Wire Twisting Rigid Stranding Machine For Sector / Round Conductor

Basic Information
Place of Origin: CHINA
Brand Name: BEYDE
Certification: SGS/ CE/ ISO
Model Number: 500
Minimum Order Quantity: 1 SET
Packaging Details: CONTAINER
Delivery Time: 90 DAYS
Payment Terms: T/T
Supply Ability: 10 sets/ month
Model: HH-500/ 630 Wire Range: 1-5.0mm
Wire Material: Copper And Aluminum Max Speed: 250rpm
Warranty: 1 Year Winding Pitch (mm): 45-1105/ 56-1259
Line Speed (m/min): 7.32-55.29/ 7.62-57.93
High Light:

wire twisting rigid stranding machine

,

sector conductor rigid stranding machine

,

round conductor rigid strander

SGS Wire Twisting Machine , Rigid Stranding Machine For Sector / Round Conductor



Product Application:



It mainly used for the skewering of bare aluminum wire, naked copper wire, aluminum stranded wire, fan shaped wire core, round wire core drawing and pressing.





Equipment Composition:



Center Setting Frame, 6,12,18,24,30 Plate Main Engine, Line Mole Base, Compression Device, Coupling Device, Retracting and Arranging Device, Transmission system and Electrical System.

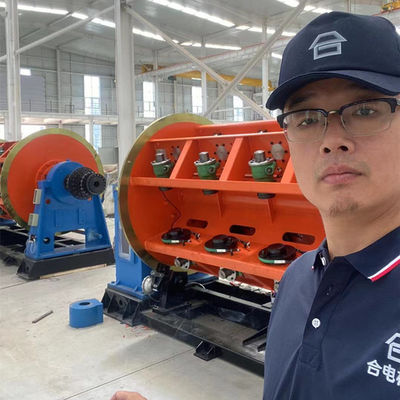

Sgs Wire Twisting Rigid Stranding Machine For Sector / Round Conductor 0

Sgs Wire Twisting Rigid Stranding Machine For Sector / Round Conductor 1



Max Xu- China wire and cable machinery expert.



Type JLK-500
(Ground shaft)
(Welding structure)
JLK-630
(Separate motor)
(Assemble structure)
JLK-760
(Separate motor)
(Assemble structure)
Single conductor dia. Cu 1.5~5.0mm 1.5~5.0mm 1.5~5.0mm
Al 1.8~5.0mm 1.8~5.0mm 1.8~5.0mm
Al alloy 1.5~5.0mm 1.5~5.0mm 1.5~5.0mm
Steel 0.9~3.2mm 0.9~3.2mm 0.9~3.2mm
Max. rotating speed 6B 190r/min 240r/min 210r/min
12B 190r/min 220r/min 190r/min
18B 170r/min 200r/min 170r/min
24B 150r/min 180r/min 150r/min
30B 130r/min 160r/min 130r/min
Motor power 6B 132KW 90KW 110KW
12B 90KW 110KW
18B 90KW 110KW
24B 90KW 110KW
30B 90KW 110KW
Max. working linear speed 40m/min 40m/min 40m/min
Pay off bobbin in cage PND500 PND630 PND760
