Product Details
Place of Origin: CHINA
Brand Name: BEYDE
Model Number: 250
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: CONTAINER
Delivery Time: 90 DAYS
Supply Ability: T/T
Usage: |
Twisting |
Color: |
According To Customer Requirement |
Name: |
Tubular Stranding Machine |
Application: |
Steel,ACSR And AAAC |
Wire Material: |
Steel |
Function: |
Stranding Wires |
Taping Head Pitch: |
7mm-2004mm |
Smallest Take-up Bobbin: |
PN1000 |
Machine Central Height: |
1000mm |
Central Pay-off Bobbin: |
PN400-PN630 |
Plc: |
Siemens |
Minimum Bare Wire Diameter: |
1mm |
Maximum Bare Wire Diameter: |
4mm |
Usage: |
Twisting |
Color: |
According To Customer Requirement |
Name: |
Tubular Stranding Machine |
Application: |
Steel,ACSR And AAAC |
Wire Material: |
Steel |
Function: |
Stranding Wires |
Taping Head Pitch: |
7mm-2004mm |
Smallest Take-up Bobbin: |
PN1000 |
Machine Central Height: |
1000mm |
Central Pay-off Bobbin: |
PN400-PN630 |
Plc: |
Siemens |
Minimum Bare Wire Diameter: |
1mm |
Maximum Bare Wire Diameter: |
4mm |

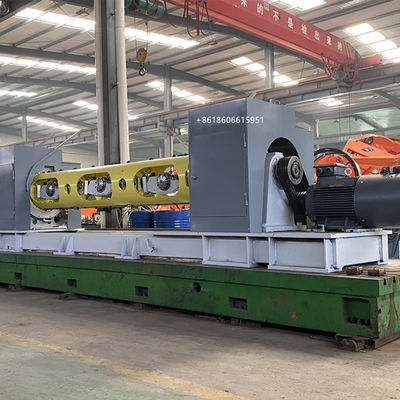

Professional 7x19 Steel Wire Rope Twisting Machine
1. Application
It is used for stranding the steel wires , aluminum wires and copper wires , as well as stranding of control cables
The machine equips with protection measures such as automatic stopping device for wire breakage , emergency stop., it is safe and relaible
2. Technical Parameter
| Bobbin size(mm) | Max. rotation speed(rpm) | Wire dia.(mm) | |||||
| 6B | 12B | 18B | 24B | Aluminum | Copper | Steel | |
| 200 | 1200 | 900 | 1.0-2.5 | 0.2-1.5 | 0.2-0.8 | ||
| 315 | 900 | 800 | 1.0-2.5 | 0.5-1.8 | 0.3-1.0 | ||
| 400 | 900 | 800 | 550 | 1.0-2.5 | 1.4-4.0 | 0.6-3.0 | |
| 500 | 800 | 600 | 450 | 350 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
| 560 | 700 | 500 | 400 | 300 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
| 630 | 700 | 500 | 330 | 260 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
| 710 | 400 | 300 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 | ||
| 760 | 350 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 | |||
