Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head

Basic Information
Place of Origin: CHINA
Brand Name: BEYDE
Model Number: 630
Minimum Order Quantity: 1 SET
Packaging Details: CONTAINER
Delivery Time: 120 DAYS
Payment Terms: L/C
Supply Ability: 200 SET/YEAR
Usage: Stranding,Twisting Color: Customized
Application: Metal Wire,Al Wire,Steel Wire Rope,stranding Wire And Cable Name: Planetary Stranding Machine,wire Planetary Stranded Machine
Voltage: 380V Power: 380V 50HZ
Function: Control Cable,power Cable Stranding Pitch: Step-less
Bearing: NSK/SKF,NSK
High Light:

cabling planetary stranding machine


hysteresis tension planetary stranding machine


taping head planetary strander

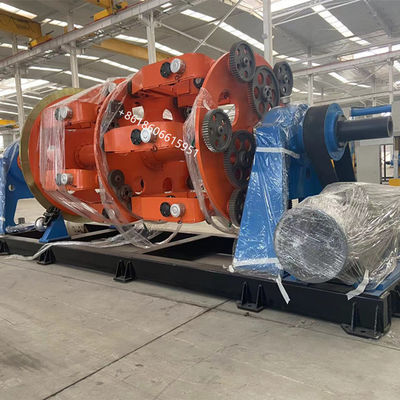

Planetary Cabling Machine With Hysteresis Tension and Taping Head



  1. Application: The equipment is mainly used for the cable forming of insulated core wires such as steel strand, control cable, signal cable and small-size plastic cable, and has the function of winding at the same time.

The equipment is composed of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control. The synchronous performance deviation of the equipment from start-up, normal operation, slow shutdown, emergency stop and other states shall not exceed 3%, so as to ensure the stability of the winch pitch. The setting out tension in the winch cage is provided by the hysteresis tensioner. The tension is adjusted online through the man-machine interface without shutdown. The tension output is balanced and easy to adjust

  1. Main Parameter:
2.1 Input wire diameter Copper Ø 1.0-4.0mm
Aluminum Ø 1.0-4.0mm
Insulate core Ø 2.0-10mm
Steel Ø 0.9-3.6mm
2.2 Max stranding OD Ø45mm
2.3 Max rotation speed 6B:80r /min 12B:70r/min
2.4 Strand pitch 80-800mm (stepless adjustable)
2.5 Max line speed 32m/min
2.6 6 bobbin motor power 30KW(AC)
2.7 12 bobbin motor power 37KW(AC)
2.8 Capstan motor power 22KW(AC)
2.9 Pay-off bobbin size in cage PND630
2.10 Non-metal taping head max speed 800r/min
2.11 Non-metal taping head pitch 4-60mm (stepless adjustable)
2.12 Non-metal taping head power 2.2KW(AC)
2.13 Copper tape shielding head max speed 606r/min
2.14 Copper tape shielding pitch 5-220mm (stepless adjustable)
2.15 Copper tape shielding head power 7.5KW(AC)
2.16 Capstan wheel size Ø 1400mm
2.17 Central pay-off size PN800-PN1600
2.18 Take-up bobbin size PN1250-PN2500
2.19 Machine center high 1000mm


  1. Main components:
3.1 Ø 1600mm end shaft Pay-off rack 1 set
3.2 6,12 bobbins strand cage Each 1 set
3.3 Assembling die holder 2 set
3.4 Concentric Non-metal taping machine 2 set
3.5 Copper tape shielding machine 1 set
3.6 Meter counter 1 set
3.7 Ø 1400 dual wheel capstan devic 1 set
3.8 Ø 2500 end shaft type take-up rack 1 set
3.9 Electric control cabinet 1 set
3.10 Safety protection fence and cover 1 set
