Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 2000 1+3
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: contianer
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 200 set/year
Usage: |
Stranding,Twisting |
Color: |
Customized |
Name: |
Laying Up Machine |
Application: |
Stranding |
Function: |
Electric Wire Laying Up |
Plc: |
SIEMENS |
Voltage: |
110V/220V/240V/380V (50/60Hz) |
Stranding Pitch (mm): |
180-3166 |
Cage Rotation (rpm): |
118 |
Warranty: |
12 Months |
Certification: |
ISO |
Motor: |
Siemens |
Inverter: |
Japan YASKAWA |
Usage: |
Stranding,Twisting |
Color: |
Customized |
Name: |
Laying Up Machine |
Application: |
Stranding |
Function: |
Electric Wire Laying Up |
Plc: |
SIEMENS |
Voltage: |
110V/220V/240V/380V (50/60Hz) |
Stranding Pitch (mm): |
180-3166 |
Cage Rotation (rpm): |
118 |
Warranty: |
12 Months |
Certification: |
ISO |
Motor: |
Siemens |
Inverter: |
Japan YASKAWA |

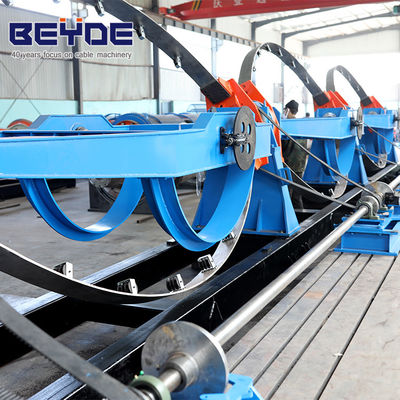

Supper Bigh GJ2000/1+4 Bow Twister Machine Supplier Skip Type Strander
Bow Twisting machine is an important equipment for wire and cable wiring. It is mainly used for control cables, low-voltage cables, rubber sheathed cables, mining cables, overhead insulated cables and other products.
With the declining profits of wire and cable products, it is imperative to reduce production costs. Improving production efficiency is one of the effective ways to reduce production costs. Due to its unique structure, its production efficiency is more than twice that of tubular strander and more than five times that of cage strander. Due to its high production efficiency, twister has been more and more widely used.
Our company has many years of R & D experience in twister and has fully integrated into the wiring production process of China's first-class cable manufacturers. We can offer 630, 800, 1000, 1250 and 1600 types of twisting machines. We can provide 1+3, 1+4, 1+5 and 1+6 wiring types according to customers' needs, effectively expanding the production range of products and meeting the wiring of up to 7-core cables. It is the best equipment for large-scale, continuous and efficient cabling.
1. Equipment features
1. The torsion bow is made of imported carbon fiber and glass fiber composites, with high strength, light weight and low noise during rotation.
2. Small moment of inertia and fast speed.
3. simple structure and convenient operation and maintenance.
4. 100% back torsion can be achieved.
2. Main technical parameters
| in size (mm) | Max. rotating speed (rpm) | Single wire Dia. (mm) | ||||
| 3B | 4B | 5B | 6B | Soft structure conductor | Hard structure conductor | |
| φ630 | 880 | 850 | 830 | 800 | φ5～φ10 | φ1.5～φ4.0 |
| φ800 | 680 | 650 | 620 | 600 | φ5～φ10 | φ2.0～φ5.0 |
| φ1000 | 430 | 400 | 370 | 350 | φ8～φ15 | φ3.0～φ6.0 |
| φ1250 | 330 | 300 | 270 | 250 | φ8～φ15 | φ3.0～φ6.0 |
| φ1600 | 250 | 220 | 200 | 180 | φ10～φ20 | φ3.5～φ8.0 |
