Gantry Type Din 2000 Cable Winding Machines Wire Rewinding Machine

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: DIN2000
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 200 set/year
Usage: Extruding,Stranding Name: Copper Wire Multi Heads Wire Drawing Machine/Cable Making Device,copper Recycling,cable Making Machine
Voltage: 3phase 380V 50HZ Warranty: One Year
Color: Customized Function: Rewinding
Stripping Length: 0.5mm~30mm
High Light:

gantry type cable winding machines


din 2000 cable winding machines


gantry type wire rewinding machine

DIN2000 Cable Winding Machines Wire Rewinding Machine



1. Specification range of take-up reel: PN1000-PN2000

2. Maximum load capacity: 10 tons

3. Wire diameter range: 6-60mm

4. Speed change stages of take-up reducer: 3 stages

5. Maximum take-up speed: 70m / min

6. Take-up motor power: 5.5kW (AC)

7.Lift motor: 1.1kw

8. Open and close motor:1.1kw 6 class

9. Walking motor: 1.1kw 731 time Pendulum needle motor

10. Cable arrangement form: translation, reciprocating and centered cable arrangement.

11. The winding motor is designed with encoder, and the encoder feedback operates in the closed-loop control system.

12. The take-up reducer has internal three-stage variable speed regulation and oil spraying lubrication.

13. Mechanical structure: double column door type telescopic jacking shaft, the wire reel is suspended on the lifting and sliding column columns on both sides, and the whole machine arranges the wires left and right through the ground track through the pendulum pin reducer

14. Reel lifting: both sides of reel are supported by columns The reel lifting is driven by two groups of reduction motors, which are placed above the column and drive the sliding blocks on both sides to lift the reel. The sliding block can be lifted and lowered separately to make the height of sliding blocks on both sides consistent. The proximity switch acts at the highest position on both sides, and the time limit switch acts at the lowest position. When the reel drops to the lowest point, it can effectively protect the reel and machine from damage.

15. Equipment structure and features: LMS gantry take-up frame has the characteristics of optimized design, excellent processing, etc. The whole machine is composed of two ground beams with rollers, two columns, sleeve telescopic beams and electrical system. The main components are made of high quality steel plate by bending welding. The telescopic sleeve is made of high strength seamless steel tube. The shape is beautiful, the rigidity and stability of the whole machine are good, the whole machine translates reciprocating line, and the wire is straight into the take-up disc without distortion by external force. It has left row, right row, left quick row and right quick row button, which is convenient for adjusting the take-up position in the production process.

16. The whole machine is coordinated and controlled by a separate programmable controller (PLC) and man-machine interface (color touch screen)

2. Main Component

2.1 2500mm portal pay-off rack 1 set
2.2 # guide line rack 1 pc

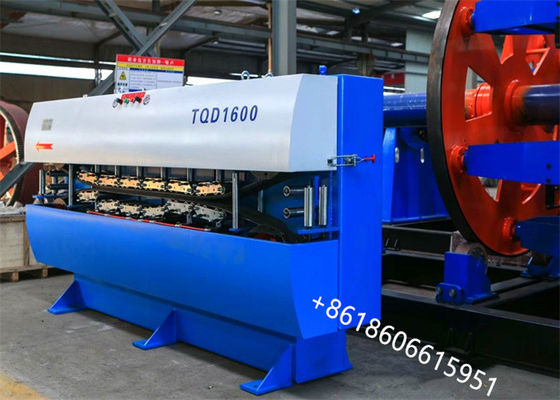

2.3 TQD1600 Pneumatic caterpillar 1 set
2.4 # guide line rack 1 pc


2500mm portal take-up rack 1 set
2.6 Electrical control system 1 set
