Professional Rigid Strander Machine Copper Wire Shielding 500/6+12+18

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 500/37
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 200 set/year
Automatic Grade: Automatic Voltage: 220V/380V 50-60Hz
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Material: Copper Wire Dia: 1-5mm
Speed: 61m/min Rotation Speed: 200rpm
Bobbin Size: PND630 Take-up Size: 2500mm
High Light:

professional rigid strander machine

,

rigid strander machine copper wire shielding

,

copper wire shielding rigid strander

Professional Copper Wire Shielding Machine 500/6+12+18 Rigid Frame Strander Line





Rigid strander JLK630/6+12+18

(Ground shaft driving and automatic side bottom loading system)

Technical sheet

  1. Application: The machine is mainly applicable to the production of large length bare aluminum, bare copper wire, steel cored aluminum stranded wire and aluminum alloy conductor, fan-shaped conductor stranding and pressing, circular conductor stranding and drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36 level traction gear box, double active and double traction devices. The branching wheel adopts natural branching to avoid the wire core from scratching during stranding. It is equipped with a complete disconnection automatic stop device. The disconnection stop is directly controlled to each pay off reel. When the disconnection reel stops, the host machine will tighten automatically immediately.
  2. Main Parameter:
2.1 Input wire diameter Copper Ø 1.5-5.0mm
Aluminum Ø 1.8-5.0mm
2.2 Max stranding OD Ø 45mm
2.3 Max rotation speed 6 bobbin 190r/min
12 bobbin 171r/min
18 bobbins 145r/min
2.4 pitch 6 bobbin 44-772mm
12 bobbin 47-859mm
18 bobbin 57-1011mm
2.5 Traction line speed 61m/min
2.6 Main motor power 110KW(AC)
2.7 Pay-off bobbin size in cage PND630
2.8 Capstan wheel size Ø 2000mm
2.9 Central pay-off size PN800-1600
2.10 Take-up bobbin size PN1250-PN2500
2.11 Machine center high 1000mm



  1. Main components:
3.1 Ø 1600mm end shaft Pay-off rack 1 set
3.2 6.12. 18 bobbins strand cage Each 1 set
3.3 Assembling and compacted die holder 3 set
3.4 Automatic side bottom loading bobbin system 3 set
3.5 Meter counter 1 set
3.6 Ø 2000 dual wheel capstan device 1 set
3.7 Ø 2500 end shaft type take-up device 1 set
3.8 Transmission system 1 set
3.9 Electric control cabinet 1 set
3.10 Safety protection fence and cover 1 set
3.11 Anchor bolt 1 set

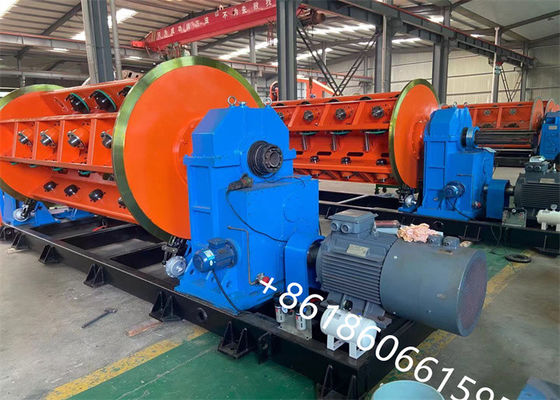

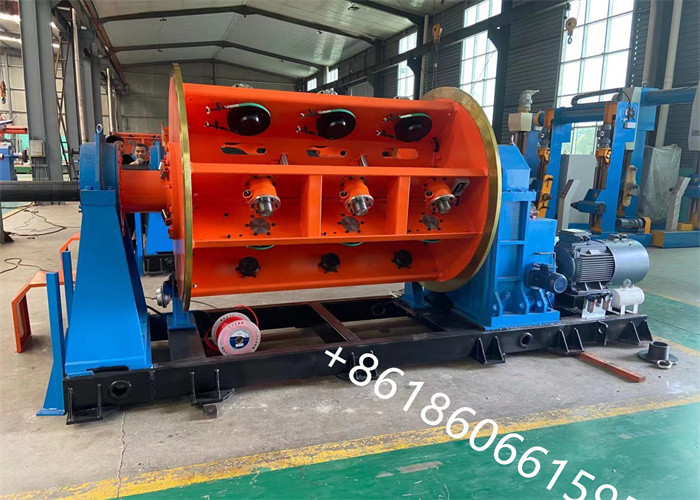

Professional Rigid Strander Machine Copper Wire Shielding 500/6+12+18 0Professional Rigid Strander Machine Copper Wire Shielding 500/6+12+18 1Professional Rigid Strander Machine Copper Wire Shielding 500/6+12+18 2
