| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | DIN2000 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | container |
| Delivery Time: | 120 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Usage: | Stranding,Twisting | Name: | Stranding Machiner,Amazing Quality Wire Cable Stranding Bunching Twisting Machine |
|---|---|---|---|
| Color: | Customer Requirement | Warranty: | 12 Months |
| Function: | Twist Wire | Application: | Making Cable,control Cable Protection |
| Speed: | 11r/min | Wire Dia.: | 7-40mm |
| Section Area: | Upto 400mm2 | Taping Unit: | Optional |
| High Light: | overhead cable making equipment,industrial purposes cable making equipment,overhead cable stranding machine |
||

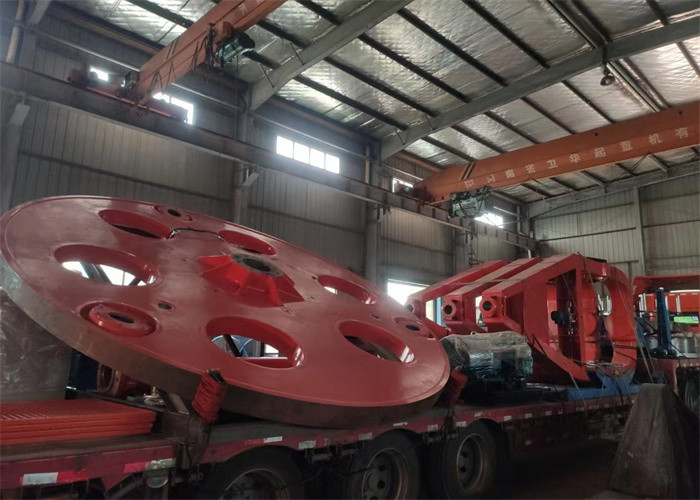

Overhead Cable Making Equipment PN2000/1+1+3 For Industrial Purposes
Planetary Cabling MachinePlanetary Cabling Machine
Inquiry Form
Usage
The planetary cabling machine is specially designed for the cabling of medium-low voltage cables, telephone cables and control cables.
Main Features
1. The cable production machine is much more cost efficient compared with traditional stranding machines.
2. The machine is capable of back-twist stranding, electronic pre-twisting.
3. The machine is equipped with a PLC control system for pre-set laying pitch and for speed synchronization with the take-up unit.
4. Caterpillar (belt) type haul-off unit driven by independent motor.
5. The machine can be equipped with a taping or armoring device.
| bbin size (mm) | Max rotation speed (rpm) | Cable core O.D.(mm) | Loading capacity (kg) | |||||
| 6B | 12B | 18B | ||||||
| Ø400 | 150 | 131 | 115 | Ø1.0~Ø2.5 | 100 | |||
| Ø500 | 123 | 109 | 96 | Ø1.5~Ø6.0 | 200 | |||
| Ø630 | 100 | 87 | 77 | Ø2.0~Ø10.0 | 300 | |||
| Bobbin size (mm) | Max rotation speed((rpm) | Cable core O.D.(mm) | Loading capacity (kg) | |||||
| 3B | 6B | (1+3)B | (1+1+3)B | |||||
| Ø1000 | 40 | 40 | Ø5.0~Ø20.0 | 2000 | ||||
| Ø1250 | 32 | 32 | 32 | 32 | Ø6.0~Ø25.0 | 3000 | ||
| Ø1600 | 21 | 21 | 21 | 21 | Ø10.0~Ø35.0 | 4000 | ||
