Efficient Aerial Cable Stranding Machine Aluminum Conductor Twist

Name: Efficient Aerial Cable Stranding Machine Aluminum Conductor Twist
Brand: Beyde Trading Co.,Ltd
SKU: 1250 1+3
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 1250 1+3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/P, T/T, D/A

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                efficient cable stranding machine, aerial cable stranding machine, aluminum conductor twist wire stranding machine


Usage:	Twisting,Cabling	Color:	Customized
Name:	Laying Up Machine	Application:	Cable Making Industry
Function:	Electric Wire Laying Up	Plc:	SIEMENS
Voltage:	380V	Stranding Pitch (mm):	116-2019
Warranty:	12 Months	Motor:	Siemens
Inverter:	Japan YASKAWA

Usage:	Twisting,Cabling
Color:	Customized
Name:	Laying Up Machine
Application:	Cable Making Industry
Function:	Electric Wire Laying Up
Plc:	SIEMENS
Voltage:	380V
Stranding Pitch (mm):	116-2019
Warranty:	12 Months
Motor:	Siemens
Inverter:	Japan YASKAWA

Product Description

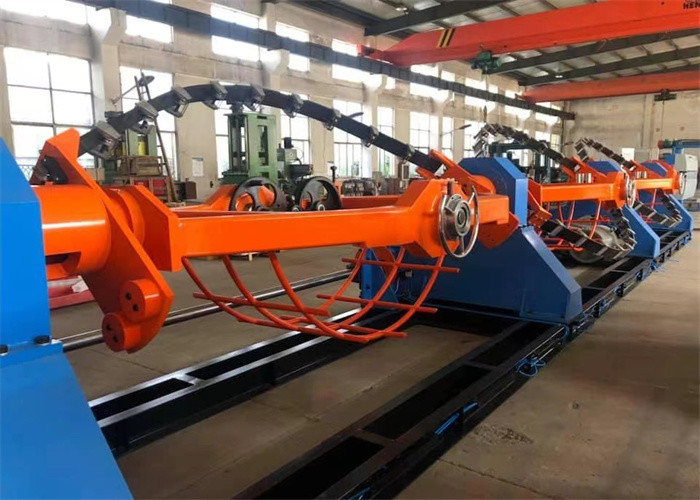

Efficient Aerial Cable Stranding Machine Aluminum Conductor Twist Machine

Application:

Cable Bow skipper machine is used for stranding copper, aluminum wire and steel wires.

Structure

The machine works speedily with the stranding bow of high rotation speed. Both ends of the stranding

bow are connected to the rotary arm.

For this reason, the natural formation can be ensured when the bow rotates in a high speed.

Model	GJ-1000	GJ-1250	GJ-1600
Pay off	1000mm	1250mm	1600mm
Line speed	150m/min	150m/min	150m/min
Conductor section(1+3B)	8-70mm2	10-95mm2	16-120mm2
Conductor section(1+4B)	10-70mm2	16-95mm2	16-120mm2
Conductor section(1+5B)	16-70mm2	16-95mm2	25-120mm2
Max. core	12mm	16mm	20mm
Rotor speed	500rpm	400rpm	350rpm
Motor power(1+4B)	55KW	75KW	95KW

Efficient Aerial Cable Stranding Machine Aluminum Conductor Twist 0
