JPD-2000 Drum Type Twister , Instrument Cable Laying Up Machine

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 2000
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Twisting,laying Up Color: Blue,decided By User
Name: 2500bobbin Drum Twister Application: Armouring And Laying Big Cable
Warranty: 12 Months Standard(kn): 3000
Voltage: 380V With 96pcs Steel Wire Armoring(kn): 5000
Maximum Linear Speed(rpm): 50 Plc: SIEMENS
Taping Pitch(mm): Step-less Cage Rotate Speed: 31(RPM)
Motor: Siemens Other Name: Wire Cable Machine
High Light:

instrument cable layup drum twister

,

instrument cable laying up machine

,

drum type cable laying up machine

Cable Laying Up Machine JPD-2000 Drum Type Twister For Instrument Cable





1. Application: This machine is mainly used for cabling large section and great length power cables and communication cables, and stranding of high voltage or extra high voltage Milliken conductors, and also for steel tape or wires armoring and copper tape or wires armoring.
2. Advantages:
1> High production efficiency: adopting new fork type structure for central rotary pay-off and rotary take-up machines, and hydraulic lifting platform for drums loading or unloading, this designing will enhance the rotating speed and shorten loading or unloading time.
2> Easy setting for traversing: the traversing pitches can be set, revised and displayed on the touch screen.
3> Rollers supporting: rotary take-up adopting rollers supporting, which can increase the rigidness and reliability of machines running.
4> Perfect safety protection system: adopting horizontal protection for pay-off and take-up machines, resetting protection for hydraulic lifting platform, over running protection for traversing, tape broken or finished protection for taping machines, safety protection covers, air pressure shortage protection, power off protection and so on.
5> Advanced electric control system: the rotary pay-off machines, taping machines, caterpillar haul-off machine, take-up machine and traversing adopting AC motors and inverter control, imported PLC to control and coordinate the whole production line, to ensure the synchronous running and the accuracy stranding pitches. Imported 10.4 inch colorful touch screen to set and display the whole line technical data.

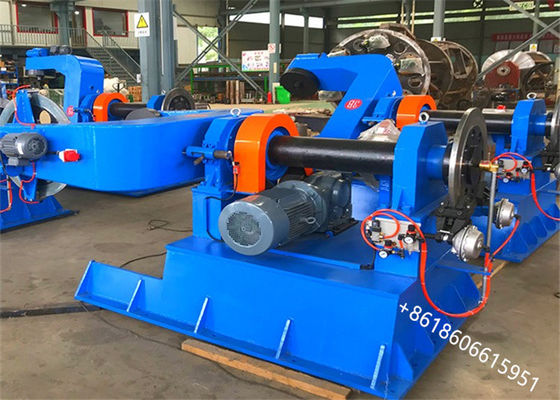

JPD-2000 Drum Type Twister , Instrument Cable Laying Up Machine 0
JPD-2000 Drum Type Twister , Instrument Cable Laying Up Machine 1



odel JPD-2500 JPD-3150 JPD-3600
Max. laying-up OD Φ20 –Φ120 Φ25 –Φ130 Φ25 –Φ130
Max. rotating speed of rum twister and pay-off stand 50 30 30
Laying-up pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Max. linear speed 50 40 40
Max. haul-off force Standard 3000 3000 3000
With 96pcs steel wire armoring 5000 6000 6000
Non-metallic taping device Max. speed 500 500 500
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ600 xΦ80 Φ600 xΦ80 Φ600 xΦ80
Tape width 15 - 80 15 – 80 15 - 80
Metallic taping device Max. speed 300 300 300
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ800 xΦ200 Φ800 xΦ200 Φ800 xΦ200
Steel tape width 15 - 60 15 - 60 15 - 60
Central pay-off stand PN2500 PN3150 PN3600
Pay-off stand PN1600 PN2000 PN2500
Take-up drum head size PN2500 PN3150 PN3600
Steel wire armoring specification PND500 PND630 PND630
Main motor power 45 55 75
Central payoff stand motor power 22 45 55
