48 Bobbins 450mm Rigid Armoured Cable Machine Batch Loading Automatic

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: 450/48
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding Name: Armoured Stranding Machine
Warranty: 1 Year Color: Customized
Stripping Length: 0.1-999mm(depend On Wire Material) Application: Power Cables , Control Cables, Instrumentation Cables.
Size: 230*80*40mm Display: 10 Inch Real Color Touch Screen
Type: Rigid Bobbin, Pintle Type
High Light:

48 bobbins armoured cable machine


rigid armoured cable machine


450mm armouring machine

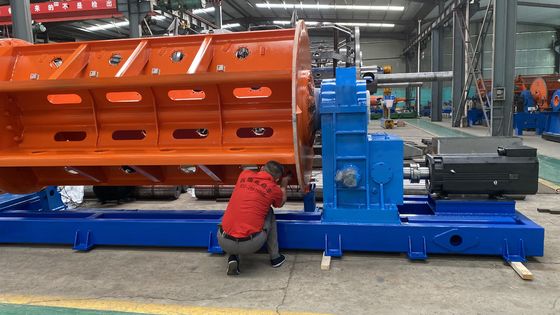

48 Bobbins (450 Mm) Rigid Armour Machine( BATCH LOADING – AUTOMATIC)


TYPE Rigid bobbin, pintle type, Wire/ Strip Armour machine

PURPOSE To produce up to Armoured Cables upto 48 Wire/ Strip Armour This machine will be used for Armouring of Power Cables , Control Cables, Instrumentation Cables.

MATERIAL : GI Round Wire / GI Strip/ Steel Round Wire/ Insulated Cores WIRE SIZE : 0.8 mm – 3.5 mm / 4 mm X0.8mm

CABLE SIZES : 8 mm – 50 mm Cables to be Armored. CONFIG. :48 ( Single Cage)

NO. OF BOBBINS :48[rotating ] – 100 Pcs 450 mm Spools to be provided with Machine

CAGES : Single Cage is Frame Type structure supported on spherical roller bearings at both ends. Drive through totally enclosed gearboxes with case hardened and profile ground gears.

BOBBIN SIZE : As per DIN 46397 – 450 MM

BOBBIN HOLDING: Bobbin Clamping is Pneumatic

BOBBIN LOADING :Side Bottom Loading is provided – Motorized

BOBBIN TENSION: Pneumatically operated and controlled through Line Speed Sensor and Proportional Valve. Manual Spring Loaded Tension Control is also provided.


(RPM)-MAX : 48 Bobbin – 120 RPM

PAYOFF UNIT : DIN 2200 MM, Self Traversing Portal Type HAUL-OFF :Single Wheel Capstan 2200 MM Dia

LAY LENGTH :100 mm to 1000 mm ( Infinitely Variable through PLC)

TAPING HEAD Heavy Duty Tangential Dual Pad Taping Head & Light Duty Tangential Dual Pad Taping Head.

TAKE-UP 1200 to 2200 mm flange dia X 10,000 kg. Motorised up/down and open/close motion of pintles Reel Rotation & Auto Traverse Unit controlled by AC Drives


Drive : Main Cage Motor with AC Inverter : 55 KW Capstan Motor with AC Inverter : 37 KW Take-up Motor with AC Inverter : 11 kW Taping Head : 5.5 KW

Traverse Motor with AC Inverter : 1.5 KW Positioning Motor : 2.2 KW

Control : PLC system to monitor and control the line interfaced with Touch Screen. Control Desk and Control Stations throughout the machine


Emergency Stop : 8 seconds

Normal Stop : 20 seconds Cage caliper disc brakes for each cage.

OPERATIONAL HAND Right hand (left to right when viewed from operator side) MACHINE PAINT

Stationary parts : RAL 5015 Rotating parts : RAL 2009 Electrical cabinets : RAL 7035

Electric Power : 415 volts AC ± 10 %, 3 phase, 50 Hz ± 1 Hz. Air : 6 kg/cm2
