Gj-1000/1+4 4.0mm Bow Twister Machine High Performance

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: 1000 1+4
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding,Twisting Color: Customized
Plc: SIEMENS Warranty: 12 Months
Name: Stranding Machine,cable Machine - Skip Type Stranding Machine Wire Material: ABC
Function: Twist Wire Aluminum Wire: 1.6-4.0mm
Motor: SIEMENS Motor Power: 55KW
Cage Rotate Speed: 150 Max After Stranding Diameter: 45
Product Name: Bow Type Stranding Machine
High Light:

high performance bow twister machine

,

4.0mm bow twister machine

High Performance GJ-1000/1+4 Bow Twister Machine From Real Factory





odel Main Specification
GJ630
GJ800
GJ 1000
GJ 1250
GJ 1400
GJ1600
Single Wire Diameter
3mm-11mm
4mm-13mm
5mm-15mm
6mm-16mm
7mm-18mm
8mm-20mm
Max Stranded Diameter
35mm
40mm
45mm
50mm
55mm
60mm
Stranding Pitch
360-1750mm
480-2000mm
600-2250mm
600-2250mm
840-2750mm
960-3000mm
Cage Rotate Speed
200RPM
185RPM
150RPM
130RPM
120RPM
100RPM
Max Line Speed
350M/MIN
370M/MIN
338M/MIN
325M/MIN
330M/MIN
300M/MIN
Capstan Wheel Diameter
800mm
800mm
1300mm
1500mm
1800mm
2000mm
Pay Off Drum Size In Cage
PN630
PN800
PN1000
PN1250
PN1400
PN1600
Central Pay Off Drum Size
PN630
PN800
PN1000
PN1250
PN1400
PN1600
Take Up Drum Size
PN800-1600mm
PN800-1600mm
PN1000-2000mm
PN1000-2000mm
PN1000-2000mm
PN1250-2500mm





Product Description
High Speed Bow Type Stranding Machine for Wire Cable Production Line

High speed skip / bow type laying up machine/ stranding machine

SINO STAR New type skip stranding for stranding wire and cable suitable for bobbin from DM500mm to DM1600mm

Skip stranding machine, bow type stranding machine suitable to bobbins ranging from 500mm to 1600mm.

We have been manufacturing skip stranding machine and bow type stranding machine suitable for the bobbins ranging from 630mm to1600mm since 2000. With experiece of almost 40 years accumulated, we are capacble of desinging and manfuacturing the skip/bow type laying up machine/ stranding machine well-suitable to our customers' requirements. We are very good at customizing high-end cable machines and equipments for our customers.

We have been producing NEW TYPE high speed skip type/bow type laying up machine/stranding machine/bow type stranding/twisting machine, double twist bunching machine since 2008 and have exported many sets of this kind of machines to our overseas customers from Italy, Spain, Morroco, Romania, Slovakia, Chile, Ecuador, Bolivia, Brazil, Japan, Vietnam, Thailand, Russia, Uzbekistan and Iraq etc. We have been dedicated into making cable machine for over 3 decades; I am pretty sure that we can offer you the best solution for the cable production line with the most competitive price and excellent service.

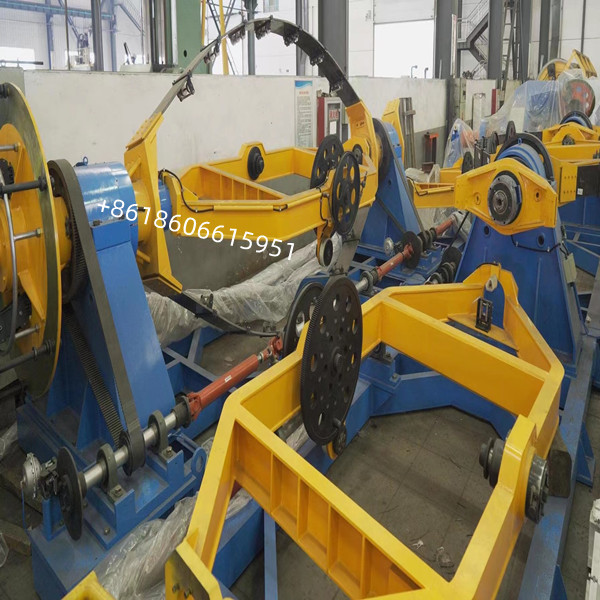

Gj-1000/1+4 4.0mm Bow Twister Machine High Performance 0Gj-1000/1+4 4.0mm Bow Twister Machine High Performance 1
