Usage: | Stranding,Twisting,core Cable Laying Up Machine | Color: | Customized |
---|---|---|---|
Name: | Laying Up Machine | Function: | Laying Up Cores Into Cable |
Wire Material: | Conductor Or Insulated Cores | Plc: | SIEMENS |
Voltage: | 380V | Stranding Pitch (mm): | 88-1499 |
Cage Rotation (rpm): | 118 | Warranty: | 12 Months |
Motor: | Siemens | Inverter: | Japan YASKAWA |
High Light: | hysteresis tension bow twister machine,plc bow twister machine |

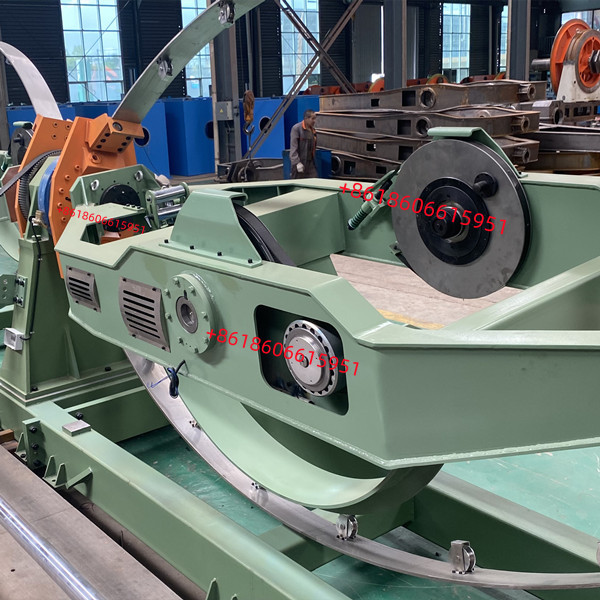

Latest New Design GJ-1600/1+4 Bow Twister Machine With Hysteresis Tension
Bobbin size | Max. rotary speed of strand bow (Max. RPM) | Max. OD of cored wires (mm) | Max. loading capacity(kg) | |||||
2B | 3B | 4B | 5B | 6B | ||||
GJ500 | Φ500 | 1000 | Φ12 | 500 | ||||
GJ630 | Φ630 | 1000 | Φ18 | 700 | ||||
GJ800 | Φ800 | 800 | 800 | 800 | 700 | 700 | Φ20 | 800 |
GJ1000 | Φ1000 | 450 | 450 | 450 | 450 | 450 | Φ24 | 1000 |
1250 | Φ1250 | 400 | 400 | 400 | 360 | 360 | Φ32 | 2500 |
GJ1600 | Φ1600 | 350 | 350 | 350 | 300 | 360 | Φ50 | 4500 |
