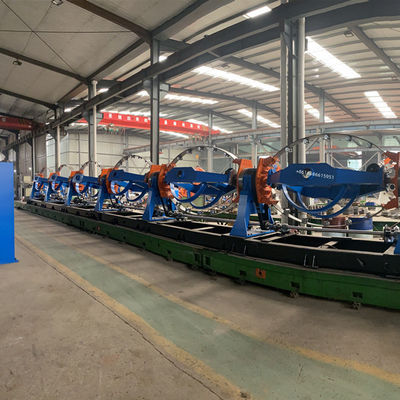

Big Section Layup Machine Electrical Cable Manufacturing

Name: Big Section Layup Machine Electrical Cable Manufacturing
Brand: Beyde Trading Co.,Ltd
SKU: 1250 1+6
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 1250 1+6

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                big section layup machine, electrical cable manufacturing layup machine, bow type automatic layup machine


Usage:	Stranding,Twisting,Cabling	Color:	Customized
Name:	Laying Up Machine	Application:	Cable Making Industry
Function:	Electric Wire Laying Up,Twist/stranding Wires	Wire Material:	Conductor Or Insulated Cores,BV BVR PVC ETC.
Plc:	SIEMENS	Voltage:	380V
Stranding Pitch (mm):	116-2019	Cage Rotation (rpm):	118
Warranty:	12 Months	Type:	Automatic
Motor:	Siemens	Inverter:	Japan YASKAWA

Usage:	Stranding,Twisting,Cabling
Color:	Customized
Name:	Laying Up Machine
Application:	Cable Making Industry
Function:	Electric Wire Laying Up,Twist/stranding Wires
Wire Material:	Conductor Or Insulated Cores,BV BVR PVC ETC.
Plc:	SIEMENS
Voltage:	380V
Stranding Pitch (mm):	116-2019
Cage Rotation (rpm):	118
Warranty:	12 Months
Type:	Automatic
Motor:	Siemens
Inverter:	Japan YASKAWA

Product Description

Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing

Model Number	HH-1000/1600
Usage	Cabling
Type	Cable Laying-up Machine
Automatic Grade	Automatic
Motor	Germany-Siemens
Inverter	Siemens
Electric Element	Siemens and Omron
Specification	CE ISO
HS Code	8479400000
Warranty	12 months
Transport Package	Wood Package

1. Application

The machine is used for stranding copper, aluminum wire and steel wires.

2. Structure

The machine r works speedily with the stranding bow of high rotation speed. Both ends of the stranding bow are connected to the rotary arm. For this reason, the natural formation can be ensured when the bow rotates in a high speed.

3. Specification

Model	Bobbin Size d1	Bobbin Quantity	Max. Core Dia.	Cabling Dia.	Take-up	Center Height
1000/1+3	1000	1+3	16	40-48	1250/2500	1000
1000/1+4		1+4
1000/1+5		1+5
1000/1+6		1+6
1250/1+3	1250	1+3	20	48-60	1250/2500
1250/1+4		1+4
1250/1+5		1+5
1250/1+6		1+6
1600/1+3	1600	1+3	25	60-75	1600/3150
1600/1+4		1+4
1600/1+5		1+5
1600/1+6		1+6

Big Section Layup Machine Electrical Cable Manufacturing 0
