Cable Armouring Planetary Stranding Machine For Pay Off Reels Dia 250 Mm To 800 Mm

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 500/6+12
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding Color: Customized
Application: Cable Making Industry Name: Planetary Stranding Machine,wire Planetary Stranded Machine,Cable Making Equipment Planetary Type Cable Stranding Machine
Voltage: 380voltage Or Others Wire Material: Conductor Or Insulated Wire
Warranty: 1 Year Function: Control Cable,power Cable,Release Cables,signal Cable Communication Cable Forming
Stranding Pitch: Step-less Plc: Siemens
Optional: Magnetic Hysteresis Type: Automatic Machine
Bearing: NSK/SKF
High Light:

cable armouring planetary stranding machine

,

dia 250mm planetary stranding machine

,

back twist planetary stranding machine

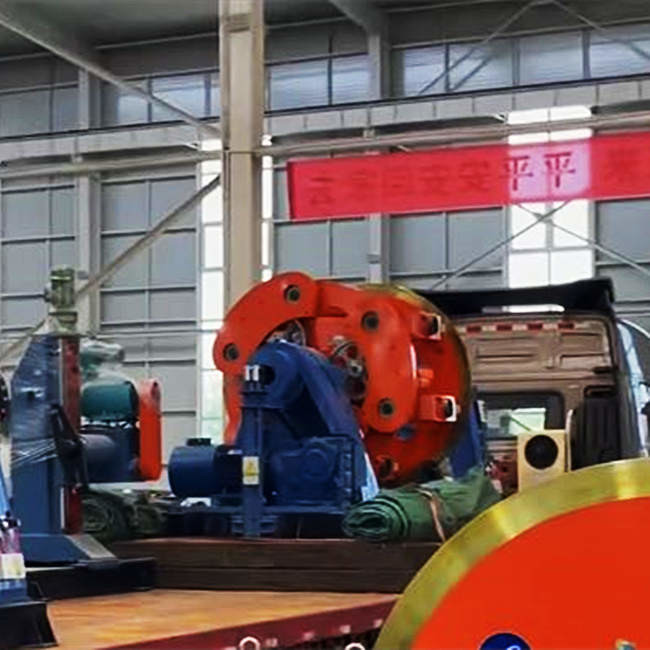

GLK500/6+12 Planetary Cabler Stranding And Armouring With Backtwist For Pay-Off Reels Dia. 250 Mm To 800 Mm



1.Application:

Planetary strander is an important equipment for wire and cable stranding. It is mainly used for copper stranded wire, aluminum stranded wire, steel stranded wire, steel core aluminum stranded wire, and cabling of insulated wire core and OPGW stranding, etc.
Generally, the traditional planetary strander adopts the ground shaft transmission type, and the transmission of capstan and the stranding cage are usually driven by the same motor through the reduction box, gearbox, ground shaft, angle box, etc. The traversing line is controlled individually or adopts centralized transmission and controlled by the above motors.
This structure has many disadvantages:
(1) The ground shaft transmission is an open transmission with poor lubrication conditions and foreign objects such as dust are easy to enter will cause gear wear and damage and loud noise at the work site.
(2) Adopting gear shifting, the gearbox structure is complex, and the gap between the shifting gears is large, which is prone to motion shock and damage the ground shaft, gears, box, etc. At the same time, because of its complicated mechanical structure, it makes the maintenance and repair of the whole machine more difficult.
(3) Restricted by the ground shaft, the speed of the twisting cage is low, and the production speed is difficult to increase, which restricts the production efficiency of the twisted wire production.
(4) Due to the fixed speed ratio of the gearbox, its pitch can only be changed within a limited range, and it is impossible to achieve the pitch required for certain process designs.
The cradle stranding machine developed by our company integrates the stranding production process of domestic first-class cable manufacturers, adopts the sub-motor transmission mode, and each winch and traction are driven by separate motors.

1. Features

1. Each parts of this equipment is driven by independent motor with low noise and without cage.
2. Human-machine interface, you can set, display and adjust the parameters on touch screen. Easy operation improves the production efficiency.
3. The stranding pitch can realize the stpeless adjustment and large pitch range is easy to improve the production technology.
4. Adopting planetary gear structure, can realize 100% back-twisting.

2. Specification:



Type JLY-400 JLY-500 JLY-630
Single wire die (mm) Copper: Φ1.2-Φ3.5 Φ1.2-Φ3.5
Aluminum: Φ1.5-Φ3.5 Φ1.5-Φ3.5
Insulation wire core: Φ5 Insulation wire core: Φ7
Stranding die (MAX) (mm) Φ35 Φ45
Stranding pitch (mm) 34.7-866 42-1000 57-1280
Taping pitch (mm) 11-181 11-188
Capstan line speed (m/min) 4.1-31 4.2-32
Bobbin in the cage PN400 PND500 PND630
Central pay off bobbin PN800-PN1600
Take-up bobbin PN1000-PN2000 PN1250-PN2500
Main motor (KW) 45 (AC) 55 (AC) 75 (AC)





Cable Armouring Planetary Stranding Machine For Pay Off Reels Dia 250 Mm To 800 Mm 0Cable Armouring Planetary Stranding Machine For Pay Off Reels Dia 250 Mm To 800 Mm 1
