Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: DIN2200
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Twisting,Stranding |
Color: |
Customized |
Name: |
2500bobbin Drum Twister,Wholesale Drum Twister Laying-up 120-130mm For Big Cross Section Cable,cable Laying Up Machine,Cable Armoring Machine Drum Twister With Steel Copper Wire Armoring |
Application: |
Armouring And Laying Big Cable |
Warranty: |
12 Months |
Voltage: |
380V |
With 96pcs Steel Wire Armoring(kn): |
5000 |
Material: |
Insulated Wire |
Maximum Speed(rpm): |
500 |
Plc: |
SIEMENS |
Taping Pitch(mm): |
Stepless |
Central Pay Off Drum Diameter: |
3150(mm),2500 |
Side Pay Off Drum Diameter: |
2500 |
Motor: |
Siemens |
Other Name: |
Wire Cable Machine |
Max After Stranding Diameter: |
130 |
Usage: |
Twisting,Stranding |
Color: |
Customized |
Name: |
2500bobbin Drum Twister,Wholesale Drum Twister Laying-up 120-130mm For Big Cross Section Cable,cable Laying Up Machine,Cable Armoring Machine Drum Twister With Steel Copper Wire Armoring |
Application: |
Armouring And Laying Big Cable |
Warranty: |
12 Months |
Voltage: |
380V |
With 96pcs Steel Wire Armoring(kn): |
5000 |
Material: |
Insulated Wire |
Maximum Speed(rpm): |
500 |
Plc: |
SIEMENS |
Taping Pitch(mm): |
Stepless |
Central Pay Off Drum Diameter: |
3150(mm),2500 |
Side Pay Off Drum Diameter: |
2500 |
Motor: |
Siemens |
Other Name: |
Wire Cable Machine |
Max After Stranding Diameter: |
130 |

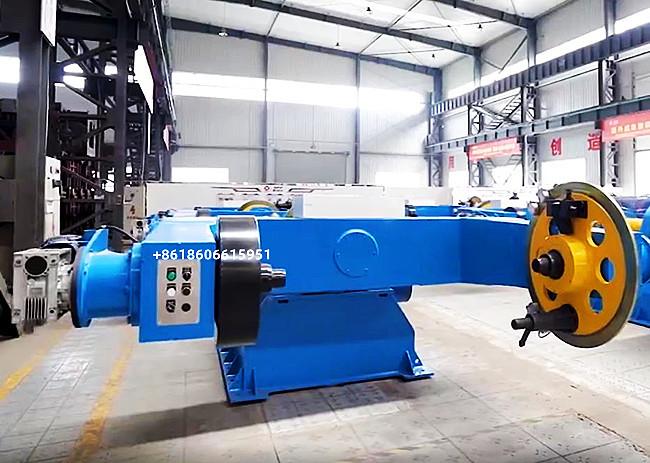

60" Drum Twisting Line 30" Rotating Dual Capstan 72" Shaftless Payoffs
1.Description:
The drum stranding line can be used to form power electrical cables of large section and length. - Armoring, screaning and banding operations can also be done with Drum Twister Line. - Sector and round sections from 4x16 mm2 to 4x400 mm2 can be produced with the Drum Twister line.
The machine is used for strand and lay-up large section, longer round, straight sector and pre-spiral sector power cables. It can strand and lay-up the pre-spiral and non-pre-spiral cable core. It also use for steel or copper wire and band armoring.
2. Main technical specification:
Type
Pay-off stand
1000, 1250, 1600, 2000, 2200, 2500, 2800, 3000, 3150, 3500
Take-up stand
1600, 1800, 2000, 2200, 2500, 2800, 3000, 3150, 3500, 4000, 4200
Steel-wire pay-off stand
500, 630
Main Components
Rotary pay-off stand(quantity and size are decided by customers), Wire guiding stand, yarn feeder, rotating mould stand, sector position detector, non-metallic, metallic taping device, rotating caterpillar, take-up & traversing stand, hydraulic lifting platform, transmission system, hydraulic system, electrical control system and safety guard system, etc. Armoring unit is optional.
| Bobbin size (mm) | Max. rotating speed (rpm) |
Single wire dia. (mm) |
Max load (t) | |||
| Take-up | Payoff | Fork-type | Cradle-type | Take-up | Pay-off | |
| Φ2000 | Φ1250 | 80 | 100 | Φ100 | 10 | 3 |
| Φ2500 | Φ1600 | 60 | 70 | Φ100 | 12 | 5 |
| Φ3150 | Φ2000 | 40 | 50 | Φ120 | 20 | 10 |
| Φ3500 | Φ2500 | 30 | 40 | Φ120 | 25 | 12 |
| Φ4000 | Φ2500 | 25 | 30 | Φ130 | 30 | 12 |
| Φ4200 | Φ2500 | 25 | 30 | Φ130 | 30 | 12 |
