Siemens Plc Rigid Frame Cable Strander For Copper Aluminum Alloy

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 630/1+6+12+18+24
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 200 set/year
Usage: Stranding,Twisting Name: Rigid Frame Stranded Machine,Amazing Quality Wire Cable Stranding Bunching Twisting Machine
Color: Customer Requirement,According To Customer Requirement Warranty: 1 Year
Power: 110kw Function: Wire Stripping,Stranding Wires
Application: Making Cable Dimension: 4000x2000x2300mm
Product Name: Rigid Frame Stranding Machine Wire Material: Steel,copper,aluminum
Stranding Pitch: 67-1270(mm)
High Light:

siemens cable strander

,

aluminum alloy cable strander

,

plc wire strander

SIEMENS PLC Rigid Frame Strander For Copper, Aluminum Alloy, Aluminum





BEYDE Rigid Strander:

The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors. Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR). Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need. Confuguration from 19 to 127 wire.



Equipped with contant tension control system and intelligent brake system:

By Tracking(Supersonic) the length of wire wrapped on bobbin, the length of wire remaining on bobbin will be detected and transmitted to PLC. The PLC will control the in-taking air by proportional valve and make the tension of wie constant following the length of wire remaining. Two groups controlling the tension of brake dics for paying-off to ensure the pressure on dics equal. Pneumatic brake system is controlled by intelligent brake system. When energency stop of machine, the speed signal of each cage will be trasmitted to PLC by sendsor. PLC will make calculation automatically and provide different brake force to each cage by proportional valve accordingly. Then the different cage will stop synchronized.



Electrical Control System:

The synchronal control system for separate motorized strander is different with other similar strander system by other makers. It's easy to operator by setting-up of all parameters on touch screen. All process parameters can be recollected. Unique pro and date collection system ensure machine running stable and realiable. The precision of lay length is less than 3% when emergency stop and less than 1% when normal stop of line (Profibus communication control).





Technical Parameter:

Machine Model JLK-630 JLK-710
Single Copper Wire Dia. Φ1.7~Φ4.5mm Φ1.7~Φ4.5mm
Single Alumium Wire Dia. Φ1.8~Φ5.0mm Φ1.8~Φ5.0mm
Single Alumium Alloy Wire Dia. Φ1.7~Φ4.5mm Φ1.7~Φ4.5mm
Max. stranded wire dia. Φ30-55mm Φ30-55mm
Lay length 40~350mm(step-less adjust) 40~350mm(step-less adjust)
Max rotate speed 500rpm 500rpm
Max line speed 100m/min 100m/min
Max rewinding speed 150~200m/min 150~200m/min
Pay off in Cage 630 710
Centre Payoff PND630/1600 PPND630/1600
Dual Wheel Capstan 2000mm, 2500mm 2000mm, 2500mm
Cage rotate motor Siemens AC Motor Siemens AC Motor
Stranding Cage Structure 6B, 12B, 18B, 24B, 30B, 36B 6B, 12B, 18B, 24B, 30B, 36B
Loading Method Side loading or Bottom loading Side loading or Bottom loading

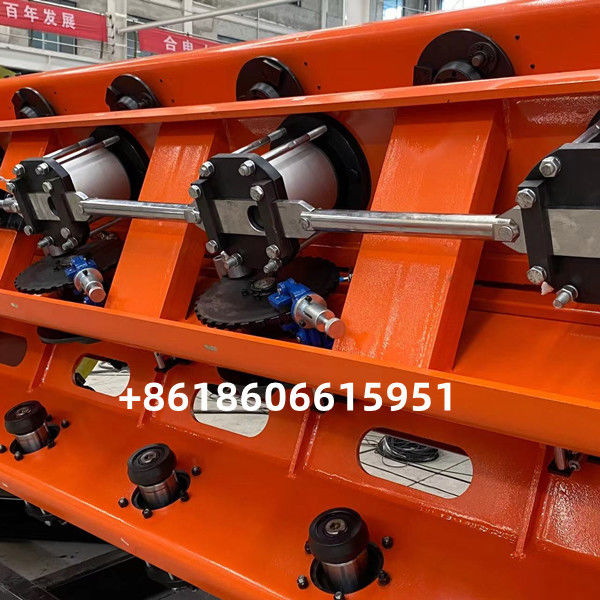

Siemens Plc Rigid Frame Cable Strander For Copper Aluminum Alloy 0Siemens Plc Rigid Frame Cable Strander For Copper Aluminum Alloy 1Siemens Plc Rigid Frame Cable Strander For Copper Aluminum Alloy 2
