Professional Siemens Wire Twisting Machine For 1*7 Galvanized Steel Wire Rope

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: 630 1+6
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding,Twisting Color: According To Customer Requirement
Name: Tubular Stranding Machine Application: Steel,stranding Steel Wire,ACSR And AAAC,Al Wire
Wire Material: Steel,stainless Steelwire Function: Stranding Wires
Taping Head Pitch: 7mm-2004mm Smallest Take-up Bobbin: PN1000
Machine Central Height: 1000mm Central Pay-off Bobbin: PN400-PN630
Take-up Bobbin Size: PN-1200-2000 Material: Iron And Steel
Plc: Siemens Minimum Bare Wire Diameter: 1mm
Largest Take-up Bobbin: PN2500 Maximum Bare Wire Diameter: 4mm
Warranty: 12 Months
High Light:

siemens wire twisting machine

,

galvanized wire twisting machine

,

siemens cable twisting machine

Professional Wire Twisting Machine for 1*7 Galvanized Steel Wire Rope





o. Parameter name Unit JGG400/6+1 Type JGG500/6+1 Type JGG630/6+1 Type
1 Wire-core diameter mm Copper 1-4
Aluminium 1.5-5
Copper 1.4-4
Aluminium 1.5-5
Copper 1.5-4
Aluminium 1.8-5
2 Max Wiring diameter mm 20 25 30
3 Cage speed r/min 900 800 700
4 Wiring pitch mm 20-285 22-329 24-365
5 Wire speed m/min 18-256.5 17.6-263.2 16.8-138.4
6 Pay-off bobbin mm PN400 PN500 PN630
7 Take-up bobbin mm PN800-PN1600 PN800-PN1600 PN800-PN1600
8 Taping head speed r/min 128-2380
(No stage)
300-2155
(No stage)
250-2000
(No stage)
9 Taping pitch mm 7-2004 8-877 8-1022
10 Central height mm 700 700 700

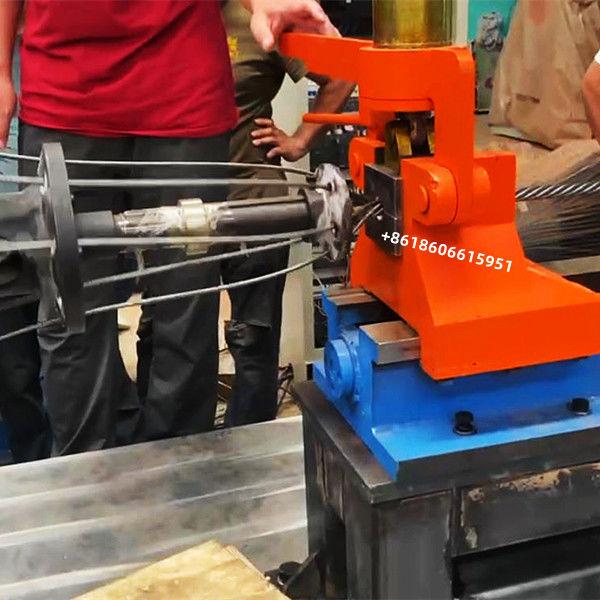

Professional Siemens Wire Twisting Machine For 1*7 Galvanized Steel Wire Rope 0Professional Siemens Wire Twisting Machine For 1*7 Galvanized Steel Wire Rope 1
