| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | PD630 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | container |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Automatic Grade: | Automatic | Driven Type: | Pneumatic,Mechanical |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Online Support |
| Warranty: | 1 Year | Material: | Stainless Steel |
| Power: | 380V | Rotation Speed: | 600rpm |
| Tape Width: | 80mm | Driving: | Motor Type |
| Cover: | Electrical Control | ||
| High Light: | copper cable taping machine,650 r/min cable taping machine,copper wire taping machine |
||

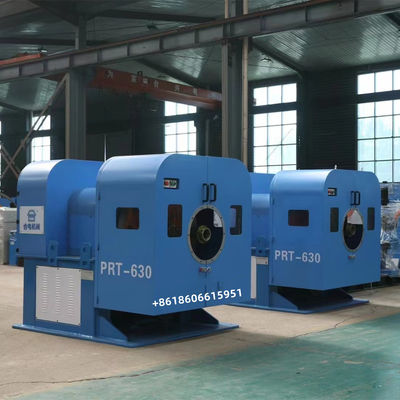

New Design PD630 Type Copper Tape Shielding Machine Max 650 r/min
The machine is used for single-layer steel armoring or copper wire screening of cables, as well as twisting Al and copper wires, stranding control cables, rubber and insulated cables, also metal-taping function.
Main Features:
1.The main shaft is made of a seamless steel tube, supported by double-row roller on both ends.
2.The back-twisting is completed by planetary gears which are bevel gears subject to heat treatment and have good resistance to abrasion and continuous motions.
3.The dog pin for the bobbin has spring inside, easy for loading and unloading the bobbin.
4. Desctiption of the steel tape armoring machine:
| Product Description | |
| Single Cable Diameter | 30mm-120mm |
| Type | semi-tangential type |
| Stranding Pitch | 0-400mm |
| Rotate Speed | 300RPM |
| Max Line Speed | 25M/MIN |
| Pads number | 2 |
| Tape size | 650x130x(15-60)mm |
| Tension control | mechanical friction |
| Machine size | L2500mm x W1000mm x H1600mm |
| Main Motor | 15KW |
