Cu Cable Stranding Machine Wire Round Conductor Compacting Tubular Rigid Strander 250rpm

Name: Cu Cable Stranding Machine Wire Round Conductor Compacting Tubular Rigid Strander 250rpm
Brand: Beyde
SKU: 18+24
Rating: 4.8 (193 reviews)

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 18+24

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 SET/YEAR

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                cu cable stranding machine, 250rpm cable stranding machine, 250rpm tubular stranding machine


Usage:	Stranding,Twisting	Name:	Rigid Frame Stranded Machine
Color:	Customer Requirement,According To Customer Requirement	Warranty:	12 Months
Power:	110kw	Function:	Stranding Wires
Application:	Making Cable	Dimension:	4200x1120x1450mm
Product Name:	Rigid Frame Stranding Machine	Wire Material:	Copper,aluminum
Stranding Pitch:	67-1270(mm)

Usage:	Stranding,Twisting
Name:	Rigid Frame Stranded Machine
Color:	Customer Requirement,According To Customer Requirement
Warranty:	12 Months
Power:	110kw
Function:	Stranding Wires
Application:	Making Cable
Dimension:	4200x1120x1450mm
Product Name:	Rigid Frame Stranding Machine
Wire Material:	Copper,aluminum
Stranding Pitch:	67-1270(mm)

Product Description

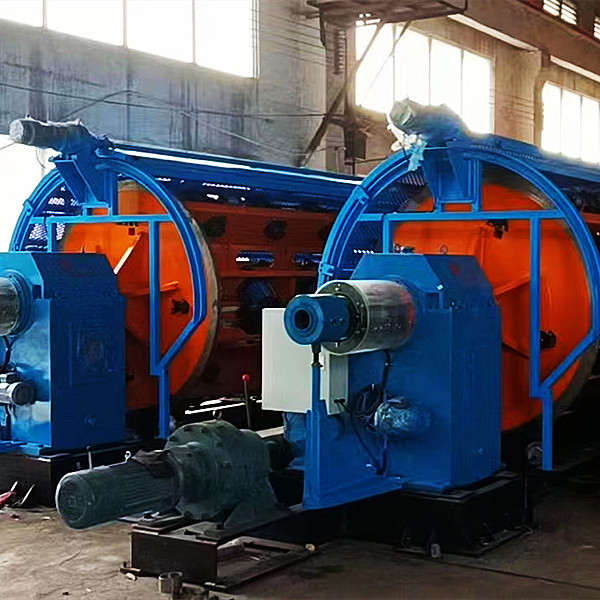

Cu Cable Wire round conductor compacting tubular Rigid Strander 250RPM

1. JLK630/710 Rigid Stranding Machine:

The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.
Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR).
Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need.
Confuguration from 19 to 127 wire.

2. Line Main Parts:

Payoff	1set
Wire Guider	1set
Stranding cage	Each 1set
single wire pre-twisted	Each 1set
Wire Closing and Press mold base	Each 1set
Meter Counter	1set
Double wheel capstan 2000/2500	1set
Side/bottom Lumped loading system	3set
Take up	1set
Electric control system	1set

3.Main Technical Date:

Machine Model	JLK-630	JLK-710
Single Copper Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Single Alumium Wire Dia.	Φ1.8～Φ5.0mm	Φ1.8～Φ5.0mm
Single Alumium Alloy Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Max. stranded wire dia.	Φ30-55mm	Φ30-55mm
Lay length	40～350mm(step-less adjust)	40～350mm(step-less adjust)
Max rotate speed	500rpm	500rpm
Max line speed	100m/min	100m/min
Max rewinding speed	150～200m/min	150～200m/min
Pay off in Cage	630	710
Centre Payoff	PND630/1600	PND630/1600
Dual Wheel Capstan	2000mm, 2500mm	2000mm, 2500mm
Cage rotate motor	Siemens AC Motor	Siemens AC Motor
Stranding Cage Structure	6B, 12B, 18B, 24B, 30B, 36B	6B, 12B, 18B, 24B, 30B, 36B
Loading Method	Side loading or Bottom loading	Side loading or Bottom loading
