| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | DIN2000 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | container |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Usage: | Extruding Stranding Drawing | Name: | Cable Making Machine |
|---|---|---|---|
| Voltage: | 3 Phase 380V 50HZ | Warranty: | One Year |
| Color: | Customized | Function: | Electric Wire Cable Manufacture |
| Power: | 7.5kw | HS Code: | 84794 |
| Size: | 1250/1600/2000/2500/3150 | Cable Diameter: | 10 Mm -80 Mm |
| High Light: | 3 phase cable making machine,extruding stranding drawing cable making machine,plc rigid cable stranding machine |
||

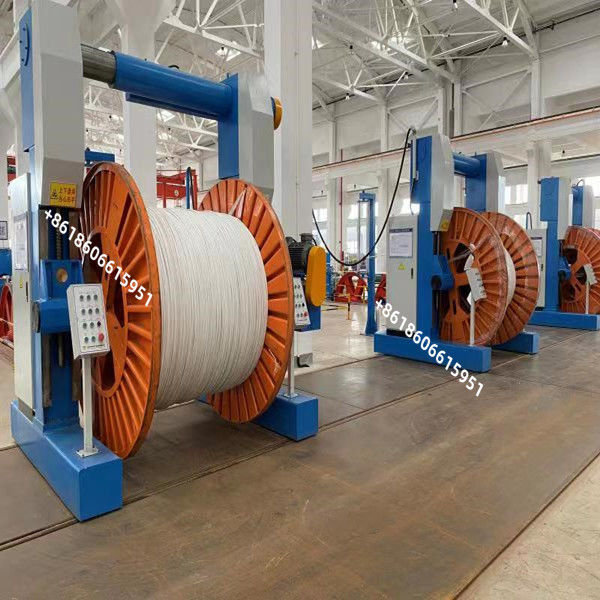

Granty Type Cable Making Machine Stranding Drawing Take Up And Pay Off
This equipment is applicable to Winding and coiling all kinds of cable into a bobbin.
| Model | Φ630/1250 | Φ800/1600 | Φ1000/2000 | Φ1250/2500 | Φ1600/3150 | Φ1600/3500 |
| Cable Dia. (mm) Max | 35 | 50 | 70 | 100 | 120 | 130 |
| Bobbin flange dia. (mm) | Φ630-1250 | Φ800-1600 | Φ1000-2000 | Φ1250-2500 | Φ1600-3150 | Φ1600/3500 |
| Bobbin overall width (mm) | 475-950 | 600-1180 | 750-1500 | 950-1900 | 1180-2300 | 1180-2300 |
| Load capacity ( T) | 3 | 4-8 | 6-10 | 12-15 | 15-20 | 18-20 |
| Line speed (m/min) Max | 100 | 80 | 80 | 65 | 60 | 50 |
| Traverse precision (%) | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 |
A. Portal shaped structure, Electrical compacting or relaxing reels and lifting. It has function of lifting together, drop together, lifting separate and drop separate..
B. Portal shaped stand traverses wire locomotive, which is driven by AC motor and controlled by transducer. The traverse speed follows the take-up speed, that make the traversing pitch adjustable step-less. It is with the function of traverse quickly and adjustment.
C. Bobbins clamping protection, the limited protection of up and down bobbins and terminal protection of transverse movement
D. Semi-automatic operating saving time and label.
