JLY-630/6+12 Cage Type Strander Machine Nsk Bearing With Maximum 24 Filling Devices

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 630/6+12
Minimum Order Quantity: 1 Set
Packaging Details: Container loading with safety packing
Delivery Time: 90 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: Customized Warranty:: 12 Months
PLC: Optional Usage: Stranding
Warranty: 1 Year Capacity: 100-150kg/h
Application: Metal Wire,Al Wire,Steel Wire Rope,stranding Wire And Cable Name: Planetary Stranding Machine
Voltage: 380voltage Or Others Wire Material: Steel Wire
Function: Control Cable Stranding Pitch: Step-less
Taping Head: 500 Plc: Siemens
Optional: Magnetic Hysteresis Stranding Cage Motor Power(kw): 45
Type: Automatic Machine Bearing: NSK/SKF
High Light:

nsk bearing strander machine

,

plc strander machine

,

nsk bearing wire stranding machine

JLY-630/6+12 Cage Type Stranding Machine With Maximum 24 Filling Devices


1. Description







2. Technical Parameter
Model 500 630



Diameter of single wire

Copper Φ1.5~Φ3.0 Φ1.5~Φ5.0
Aluminum Φ1.8~Φ4.0 Φ1.8~Φ5.0
Insulated cores Φ3.0~Φ8.0 Φ3.0~Φ10.0
Maximum stranded conductor OD Φ45 Φ50
Stranding lay length Step-less, adjustable



Maximum rotating speed

6B 100 70
12B 100 70
18B 70 62
24B 62 50



Capstan

(m/min)

Maximum pulling speed

51 42
Payoff reel in cage PN500/PND500 PN500/PND500



Center payoff reel

PN800/PN1600 PN800/PN1600
Take-up reel PN1600/PN2500 PN1600/PN2500
Central height 1000 1000

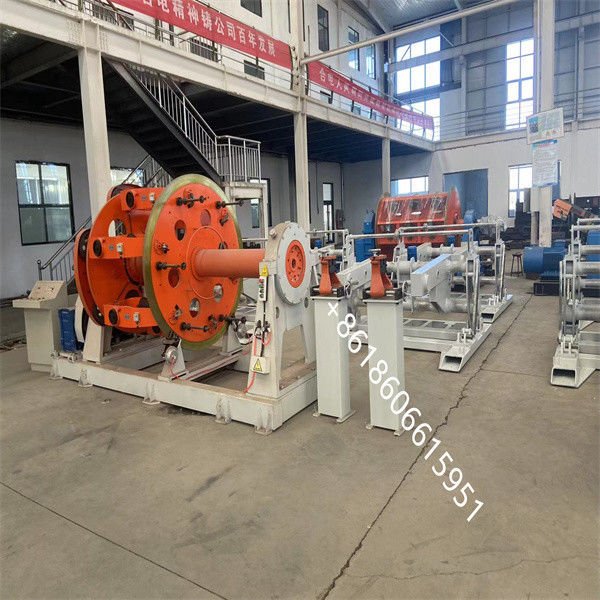

JLY-630/6+12 Cage Type Strander Machine Nsk Bearing With Maximum 24 Filling Devices 0JLY-630/6+12 Cage Type Strander Machine Nsk Bearing With Maximum 24 Filling Devices 1

BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China.



BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products.



BEYDE was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With maturetechnological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines
